| MLA PART CODE | ZME05B |
|---|---|

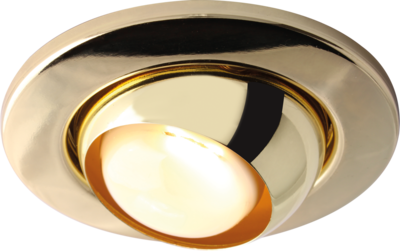

| DESCRIPTION | IP20 230V 60W max.R63 Brass Eyeball |
| FINISH | Brass |
| DIMENSIONS (MM) | Diameter - 150 Height - 130 Recessed Depth - 100 Minimum Void - 150 |
| CUT-OUT (MM) | Cut-out Diameter - 120 |
| TILT (DEGREES) | 45 |
| ROTATION (DEGREES) | 350 |
| CONSTRUCTION | Construction - Pressed steel |
| CLASS | II |
| IP RATING | IP20 |
| MAX. WATTAGE (W) | 60 |
| LAMP TYPE | R63 |
| LAMP BASE | E27 |
| LAMP INCLUDED | No |
| DIMMABLE | Lamp dependent |
| IC RATED | No |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE LENGTH (M) | 0.15 |
| CABLE TYPE | 2-core 0.75mm² H05SS-F |
| WARRANTY | 1year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60598 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5055559112372 |
