DATASHEET
| MLA PART CODE | ZTRIBCWW |
|---|---|

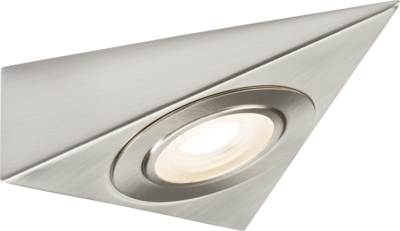

| DESCRIPTION | 230V LED Triangular Under Cabinet Light - Brushed Chrome 3000K |
| NET WEIGHT (KG) | 0.185 |
| FINISH | Brushed Chrome |
| DIFFUSER | Clear |
| DIMENSIONS (MM) | Length - 128 Width - 128 Projection - 40 |
| CONSTRUCTION | Construction - Pressed steel |
| CLASS | I |
| IP RATING | IP20 |
| WATTAGE (W) | 2 |
| LAMP TECHNOLOGY | LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 135 |
| LUMENS LIGHT SOURCE ONLY (LM) | 225 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 87.34 |
| CIRCUIT WATTAGE (W) | 2.602 |
| CCT | 3000K |
| LIGHT COLOUR | Warm White |
| CRI | >80 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.022 |
| SVM | 0.008 |
| PST-LM | 0.001 |
| BEAM ANGLE (DEGREES) | 105 |
| LIFE SPAN (HRS) | 30,000 |
| L70B50 LIFESPAN (HRS) | 30,000 |
| DIMMABLE | No |
| OPERATING TEMPERATURE | 40°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE LENGTH (M) | 1.2 |
| WARRANTY | 3year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5055832956662 |
Date Created: 08/05/2026 16:03
