| MLA PART CODE | ZCS6NAB |
|---|---|

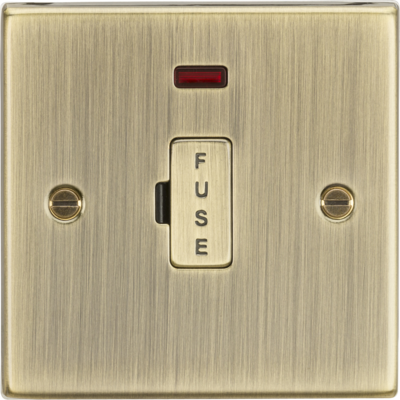

| DESCRIPTION | 13A Fused Spur Unit with Neon - Square Edge Antique Brass |
| NET WEIGHT (KG) | 0.134 |
| FINISH | Antique Brass |
| DIMENSIONS (MM) | Height - 89 Width - 89 Projection - 10.5 |
| MINIMUM MOUNTING BOX DEPTH | 25mm |
| CONSTRUCTION | Construction - Premium grade steel |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| EARTH TERMINAL | Yes |
| NEON INDICATOR | Yes |
| LOAD/MAX. LOAD | 13A |
| TERMINAL TYPE | Screw |
| TERMINAL CAPACITY | 3 x 2.5mm² or 2 x 4.0mm² |
| WARRANTY | 15year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 1363-4 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5055832976240 |
