DATASHEET
ZCU9931C

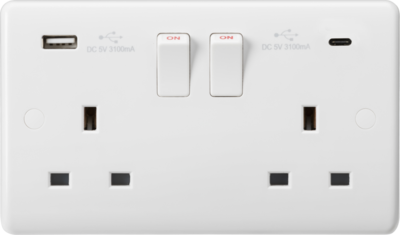

Curved Edge 13A 2G SP Switched Socket with Dual USB Charger A+C (5V DC 3.1A shared)
| MLA PART CODE | ZCU9931C |
|---|---|
| DESCRIPTION | Curved Edge 13A 2G SP Switched Socket with Dual USB Charger A+C (5V DC 3.1A shared) |
| NET WEIGHT (KG) | 0.191 |
| FINISH | White |
| DIMENSIONS (MM) | Height - 86 Width - 146 Projection - 7 |
| MINIMUM MOUNTING BOX DEPTH | 25-35mm (dependent on wiring conditions) |
| CONSTRUCTION | Construction - Thermoset resin |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SWITCH TYPE | Single Pole |
| EARTH TERMINAL | Yes |
| LOAD/MAX. LOAD | 13A |
| TERMINAL CAPACITY | 2 x 2.5mm² or 1 x 4.0mm² |
| NO. OF USB PORTS | 2 |
| NO. OF TYPE-A PORTS | 1 |
| NO. OF TYPE-C PORTS | 1 |
| USB CHARGING | 5V DC 3.1A (shared) |
| ANTI-MICROBIAL PROPERTIES | 3rd Party Tested to ISO 22196:2011 |
| WARRANTY | 2year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 1363-2, EN 61000 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270810783 |
Date Created: 25/07/2025 04:08
