DATASHEET
| MLA PART CODE | ZSPEK2W4CCT |
|---|---|

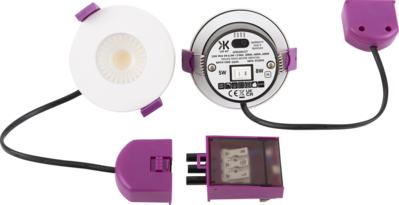

| DESCRIPTION | SpektroLED - Fire Rated IP65 Downlight with 2x Wattage and 4x CCT |
| NET WEIGHT (KG) | 0.165 |
| FINISH | Black |
| DIMENSIONS (MM) | Diameter - 87 Projection - 4 Overall Height - 46 Recessed Depth - 42 Minimum Void - 42 |
| CUT-OUT (MM) | Cut-out Diameter - 70 |
| CONSTRUCTION | Construction - Pressed steel |
| CLASS | II |
| IP RATING | IP65 (IP20 from above) |
| WATTAGE (W) | 8 |
| MAX. WATTAGE (W) | 8 |
| LAMP TECHNOLOGY | LED |
| LUMENS (LM) | 795 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 101.8 |
| CIRCUIT WATTAGE (W) | 7.81 |
| CCT | 2700/3000/4000/6000K |
| LIGHT COLOUR | CCT |
| CRI | >80 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.041 |
| DISPLACEMENT FACTOR | >0.7 |
| SVM | 0.03 |
| PST-LM | 0.135 |
| BEAM ANGLE (DEGREES) | 60 |
| LIFE SPAN (HRS) | 50,000 |
| DIMMABLE | Yes* |
| FIRE-RATED | Tested to 30/60/90 minutes |
| I-JOIST RATED | 30 minutes |
| WEB-JOIST RATED | 30 minutes |
| IC RATED | Yes |
| ACOUSTIC RATED | Yes |
| OPERATING TEMPERATURE | -25° ~ +40°C°C |
| INPUT VOLTAGE | 230V 50Hz |
| WARRANTY | 5year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270826241 |
Date Created: 08/05/2026 16:11
