| MLA PART CODE | ZBATCA6 |
|---|---|

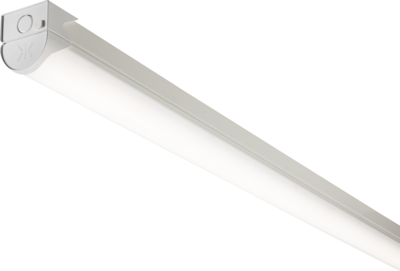

| DESCRIPTION | 230V 6ft 40W LED CCT Batten |
| NET WEIGHT (KG) | 1.9 |
| FINISH | White |
| DIFFUSER | Opal |
| DIMENSIONS (MM) | Length - 1734 Height - 61 Width - 71 |
| CONSTRUCTION | Construction - Pressed steel Construction 2 - & polycarbonate |
| CLASS | I |
| IP RATING | IP20 |
| WATTAGE (W) | 40 |
| LAMP TECHNOLOGY | SMD LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 4890/5350/4840 |
| LUMENS LIGHT SOURCE ONLY (LM) | 5950 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 136.1 |
| CIRCUIT WATTAGE (W) | 39.3 |
| CCT | 3000/4000/6000K |
| LIGHT COLOUR | CCT |
| CRI | >85 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.18 |
| DISPLACEMENT FACTOR | >0.7 |
| SVM | 0.005 |
| PST-LM | 0 |
| BEAM ANGLE (DEGREES) | 140 |
| L70B50 LIFESPAN (HRS) | 50,000 |
| DIMMABLE | No |
| OPERATING TEMPERATURE | -20~45°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE GLAND INCLUDED | Open grommet |
| DRIVER | DRIVER TYPE - Constant Current MAX. OUTPUT - 40W OUTPUT VOLTAGE - 28-40V OUTPUT CURRENT - 1000mA POWER FACTOR - 0.95 AMBIENT TEMPERATURE (Ta) - 45°C CASE TEMPERATURE (Tc) - 90°C |
| WARRANTY | 5year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270886375 |
