DATASHEET
SFR9001MW

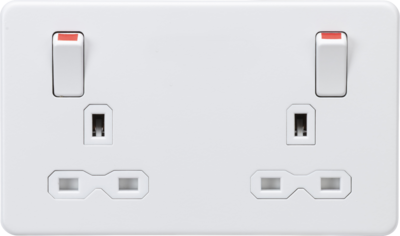

13A 2G DP Switched Socket Metal Outboard Rockers with Red Flash - Matt White w/white insert
| MLA PART CODE | SFR9001MW |
|---|---|
| DESCRIPTION | 13A 2G DP Switched Socket Metal Outboard Rockers with Red Flash - Matt White w/white insert |
| NET WEIGHT (KG) | 0.252 |
| FINISH | Matt White |
| INSERT COLOUR | White |
| DIMENSIONS (MM) | Height - 87.5 Width - 147.5 Depth - 32.5 Projection - 9.7 Recessed Depth - 22.8 |
| MINIMUM MOUNTING BOX DEPTH | 25-35mm (dependent on wiring conditions) |
| CONSTRUCTION | Construction - SPCC Steel |
| CLASS | I |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SWITCH TYPE | Double Pole |
| EARTH TERMINAL | Yes |
| LOAD/MAX. LOAD | 13A |
| TERMINAL TYPE | Captive |
| TERMINAL CAPACITY | 3 x 2.5mm² or 2 x 4.0mm² |
| ADDITIONAL FEATURES | Outboard Rockers |
| WARRANTY | 25year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270848892 |
Date Created: 24/03/2026 16:45
