| MLA PART CODE | 12DCIP40P |
|---|---|

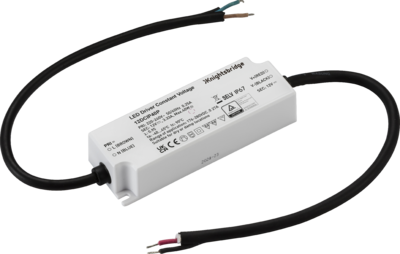

| DESCRIPTION | 12V IP67 40W DC LED Driver - Constant Voltage |
| NET WEIGHT (KG) | 0.31 |
| FINISH | White |
| DIMENSIONS (MM) | Length - 130 Height - 28 Width - 45 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP67 |
| SVM | 0.0055 |
| PST-LM | 0.001 |
| INPUT VOLTAGE | 230V 50Hz |
| SECONDARY VOLTAGE | 12V |
| CABLE LENGTH (M) | 0.3 |
| DRIVER | DRIVER TYPE - Constant Voltage MAX. OUTPUT - 40W OUTPUT VOLTAGE - 12V OUTPUT CURRENT - 0 - 3330mA POWER FACTOR - 0.95 EFFICIENCY FULL LOAD - 83 ISOLATION - SELV AMBIENT TEMPERATURE (Ta) - -40~45°C CASE TEMPERATURE (Tc) - 90°C |
| WARRANTY | 3year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5061061272671 |
