DATASHEET
| MLA PART CODE | AT24BK |
|---|---|

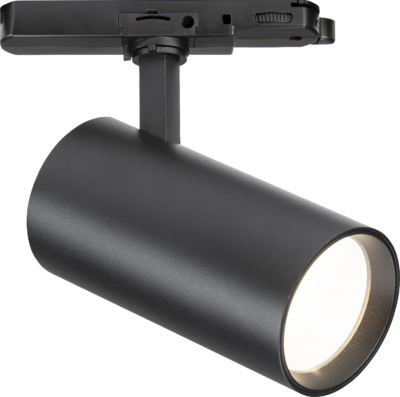

| DESCRIPTION | Atlas 230V 3-Circuit Track IP20 24W LED Spotlight 3000K - Matt Black |
| NET WEIGHT (KG) | 0.85 |
| FINISH | Matt Black |
| DIFFUSER | Frosted |
| DIMENSIONS (MM) | Diameter - 80 Length - 160 Overall Height - 232 |
| TILT (DEGREES) | 80 |
| ROTATION (DEGREES) | 350 |
| CONSTRUCTION | Construction - Aluminium Construction 2 - & glass |
| CLASS | II |
| IP RATING | IP20 |
| WATTAGE (W) | 24 |
| LAMP TECHNOLOGY | CoB LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 3410 |
| LUMENS LIGHT SOURCE ONLY (LM) | 3800 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 166 |
| CIRCUIT WATTAGE (W) | 23.62 |
| CCT | 3000K |
| LIGHT COLOUR | Warm White |
| CRI | >90 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.115 |
| DISPLACEMENT FACTOR | >0.7 |
| BEAM ANGLE (DEGREES) | 40 |
| L70B50 LIFESPAN (HRS) | 50,000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| OPERATING TEMPERATURE | 45°C |
| INPUT VOLTAGE | 230V 50Hz |
| WARRANTY | 5year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5061061277591 |
Date Created: 09/01/2026 13:49
