DATASHEET
ATCW30W

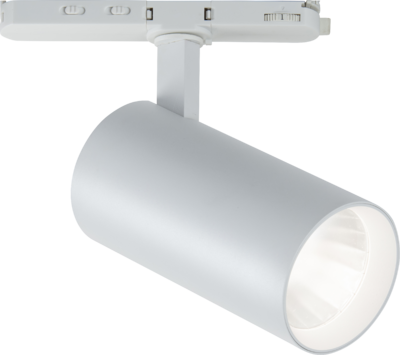

Atlas Pro 230V 3-Circuit Track Dimmable Spotlight in Matt White - 26/28/30W and CCT Adjustable
| MLA PART CODE | ATCW30W |
|---|---|
| DESCRIPTION | Atlas Pro 230V 3-Circuit Track Dimmable Spotlight in Matt White - 26/28/30W and CCT Adjustable |
| NET WEIGHT (KG) | 0.7 |
| FINISH | Matt White |
| DIFFUSER | Frosted |
| DIMENSIONS (MM) | Diameter - 80 Length - 160 Overall Height - 228 |
| TILT (DEGREES) | 80 |
| ROTATION (DEGREES) | 350 |
| CONSTRUCTION | Construction - Aluminium Construction 2 - & glass |
| CLASS | II |
| IP RATING | IP20 |
| WATTAGE (W) | 26 / 28 / 30 |
| LAMP TECHNOLOGY | CoB LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 2440/2665/2700/2520/2795/2850/2650/2965/3010 |
| LUMENS LIGHT SOURCE ONLY (LM) | 4015 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 144 |
| CIRCUIT WATTAGE (W) | 27.80 |
| CCT | 2700/4000/6000K |
| LIGHT COLOUR | CCT |
| CRI | >90 |
| RUNNING CURRENT (A) | 0.602 |
| SVM | 0.009 |
| PST-LM | 0.69 |
| BEAM ANGLE (DEGREES) | 39 |
| L70B50 LIFESPAN (HRS) | 50,000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | Yes* |
| INPUT VOLTAGE | 230V 50Hz |
| WARRANTY | 5year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5061061278314 |
Date Created: 09/01/2026 13:46
