DATASHEET
EMEXIT2DA

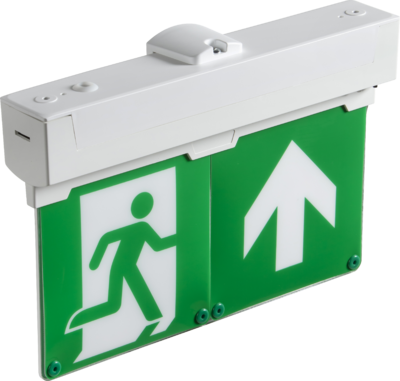

230V IP20 DALI Multi-mount LED Emergency Exit Sign with Rotatable Legends
| MLA PART CODE | EMEXIT2DA |
|---|---|
| DESCRIPTION | 230V IP20 DALI Multi-mount LED Emergency Exit Sign with Rotatable Legends |
| NET WEIGHT (KG) | 0.77 |
| FINISH | White |
| DIMENSIONS (MM) | Length - 264 Height - 173 Width - 45 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP20 |
| WATTAGE (W) | 3 |
| LAMP TECHNOLOGY | LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 65 |
| LUMEN TOLERANCE | 5% |
| LUMENS EMERGENCY MODE (LM) | 40 |
| CIRCUIT WATTAGE (W) | 3.7 |
| CCT | 6500K |
| LIGHT COLOUR | Daylight |
| CRI | >70 |
| DISPLACEMENT FACTOR | >0.7 |
| SVM | 0.01 |
| PST-LM | 0.5 |
| EMERGENCY | Maintained / Non-maintained (not Switched) |
| SELF-TEST | Addressable |
| OPERATING TEMPERATURE | 25°C |
| INPUT VOLTAGE | 230V 50Hz |
| BATTERY TYPE | LiFePO4 |
| BATTERY INCLUDED | Yes |
| STANDBY POWER | 0.3W |
| WARRANTY | 3year(s) |
| WARRANTY INFORMATION | including battery |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5061061278819 |
Date Created: 14/04/2026 21:46
