| MLA PART CODE | OP21T |
|---|---|

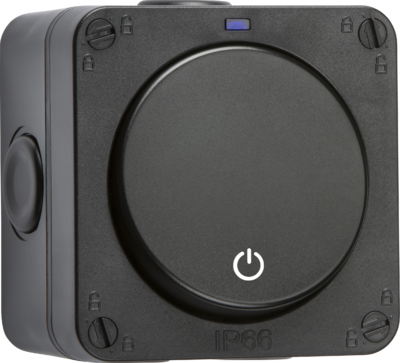

| DESCRIPTION | IP66 16A 1G Time Delay Switch - Black |
| NET WEIGHT (KG) | 0.16 |
| FINISH | Black |
| DIMENSIONS (MM) | Height - 90.5 Width - 90.5 Depth - 65.9 Projection - 65.9 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP66 |
| IK RATING | IK06 |
| EARTH TERMINAL | Yes |
| NEON INDICATOR | Yes |
| LOAD/MAX. LOAD | 16A |
| TERMINAL CAPACITY | 3 x 2.5mm² or 2 x 4.0mm² |
| ADDITIONAL FEATURES | DIP Switch Time Delay Configuration from 2mins to 180mins |
| CABLE ENTRY (MM) | 6 x 20, 1 x 25 |
| CABLE GLAND INCLUDED | No |
| WARRANTY | 2year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 60669-1 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5061061279700 |
