DATASHEET
| MLA PART CODE | EMLED4DA |
|---|---|

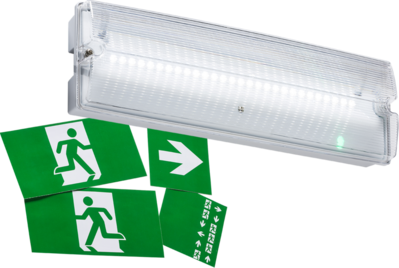

| DESCRIPTION | 230V IP65 3W DALI LED Emergency Bulkhead Maintained/Non- Maintained |
| NET WEIGHT (KG) | 0.52 |
| FINISH | White |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP65 |
| IK RATING | IK07 |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE ENTRY (MM) | 2 x 20 |
| CABLE GLAND INCLUDED | Blind grommet |
| DIMENSIONS (MM) | Length - 350 Height - 60 Width - 117 Projection - 60 |
| DIFFUSER | Prismatic |
| EMERGENCY | Maintained / Non-maintained / Switched |
| SELF-TEST | Addressable |
| WATTAGE (W) | 3 |
| LAMP TECHNOLOGY | SMD LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 185 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 78 |
| LUMENS EMERGENCY MODE (LM) | 150 |
| CIRCUIT WATTAGE (W) | 2.4 |
| CCT | 5500K |
| LIGHT COLOUR | Daylight |
| BEAM ANGLE (DEGREES) | 140 |
| L70B50 LIFESPAN (HRS) | 25000 |
| DIMMABLE | No |
| OPERATING TEMPERATURE | 0~45°C |
| BATTERY TYPE | LiFePO4 |
| BATTERY INCLUDED | Yes |
| WARRANTY | 3year(s) |
| WARRANTY INFORMATION | (including battery) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60598 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270857719 |
