DATASHEET
EMSWINGLT

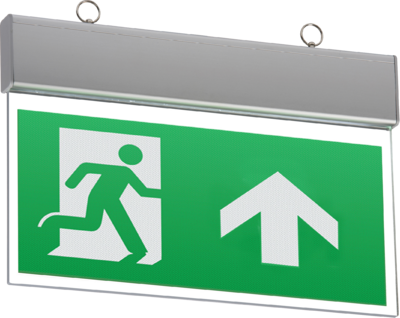

230V IP20 Ceiling Mounted LED Emergency Exit Sign (maintained/non-maintained)
| MLA PART CODE | EMSWINGLT |
|---|---|
| DESCRIPTION | 230V IP20 Ceiling Mounted LED Emergency Exit Sign (maintained/non-maintained) |
| NET WEIGHT (KG) | 1.16 |
| FINISH | Brushed Chrome |
| DIMENSIONS (MM) | Length - 331 Height - 221 Width - 25 Overall Height - 1500 |
| CONSTRUCTION | Construction - Aluminium Construction 2 - & polycarbonate |
| CLASS | I |
| IP RATING | IP20 |
| WATTAGE (W) | 4 |
| LAMP TECHNOLOGY | LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 55 |
| LUMEN TOLERANCE | 5% |
| CIRCUIT WATTAGE (W) | 4.2 |
| CCT | 6000K |
| LIGHT COLOUR | Daylight |
| CRI | >70 |
| RUNNING CURRENT (A) | 0.036 |
| L70B50 LIFESPAN (HRS) | 40000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| EMERGENCY | Maintained / Non-maintained / Switched |
| SELF-TEST | No |
| OPERATING TEMPERATURE | 0~45°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE LENGTH (M) | 1.25 |
| CABLE TYPE | H03VV-F 4 x 0.5 |
| DRIVER | MAX. OUTPUT - 4W OUTPUT VOLTAGE - 12V OUTPUT CURRENT - 390mAmA POWER FACTOR - 0.7 AMBIENT TEMPERATURE (Ta) - 0 ~ 45°C CASE TEMPERATURE (Tc) - 60°C |
| BATTERY TYPE | LiFePO4 |
| BATTERY INCLUDED | Yes |
| WARRANTY | 3year(s) |
| WARRANTY INFORMATION | (including battery) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270857733 |
Date Created: 04/12/2025 22:26
