DATASHEET
M6300NTB

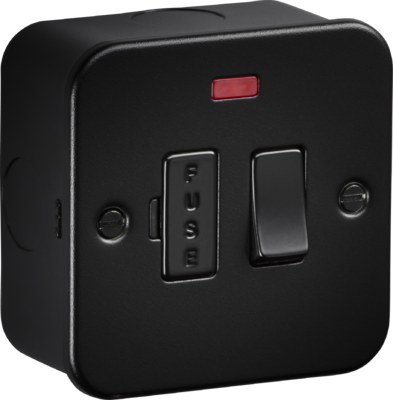

Metalclad 13A Switched Fused Spur with Neon - Textured Sand Black Finish
| MLA PART CODE | M6300NTB |
|---|---|
| DESCRIPTION | Metalclad 13A Switched Fused Spur with Neon - Textured Sand Black Finish |
| NET WEIGHT (KG) | 0.2 |
| FINISH | Textured Sand Black |
| DIMENSIONS (MM) | Height - 81.2 Width - 81.2 Depth - 48.4 |
| CONSTRUCTION | Construction - SPCC Steel |
| CLASS | I |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SWITCH TYPE | Double Pole |
| EARTH TERMINAL | Yes |
| NEON INDICATOR | Yes |
| LOAD/MAX. LOAD | 13A |
| TERMINAL CAPACITY | 3 x 2.5mm² or 2 x 4.0mm² |
| ADDITIONAL FEATURES | Metal Matt Black Rocker with Red Flash and Fuse Holder |
| WARRANTY | 25year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 1363-4 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270888881 |
Date Created: 21/11/2025 13:26
