DATASHEET
| MLA PART CODE | MR9000UTB |
|---|---|

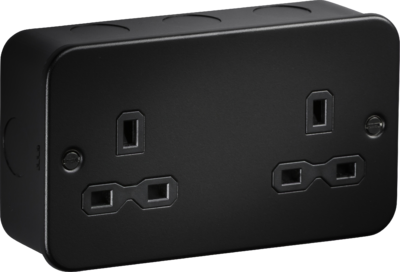

| DESCRIPTION | Metalclad 13A 2G Unswitched Socket - Textured Sand Black Finish |
| NET WEIGHT (KG) | 0.336 |
| FINISH | Textured Sand Black |
| INSERT COLOUR | Black |
| DIMENSIONS (MM) | Height - 81.2 Width - 141.5 Depth - 44.4 |
| CONSTRUCTION | Construction - SPCC Steel |
| CLASS | I |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| EARTH TERMINAL | Yes |
| LOAD/MAX. LOAD | 13A |
| TERMINAL CAPACITY | 3 x 2.5mm² or 2 x 4.0mm² |
| WARRANTY | 25year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 1363-2 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270889048 |
Date Created: 21/11/2025 13:30
