| MLA PART CODE | GDM023 |
|---|---|

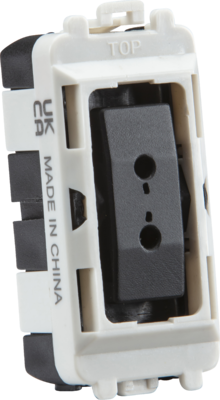

| DESCRIPTION | 20AX 2-Way SP Retractive Grid Switch (Centre Off ) |
| NET WEIGHT (KG) | 0.026 |
| DIMENSIONS (MM) | Height - 56.3 Width - 24.8 Depth - 18.7 Recessed Depth - 18.7 |
| MINIMUM MOUNTING BOX DEPTH | 35mm |
| CONSTRUCTION | Construction - ABS Construction 2 - & steel |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SWITCH TYPE | Single Pole |
| SWITCH FUNCTION | 2-Way (centre-off) |
| LOAD/MAX. LOAD | 20AX |
| TERMINAL TYPE | Captive |
| TERMINAL CAPACITY | 3 x 2.5mm² or 2 x 4.0mm² |
| ADDITIONAL FEATURES | Retractive |
| WARRANTY | 25year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 60669-1 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270891171 |
