DATASHEET
CL9941BCWUR

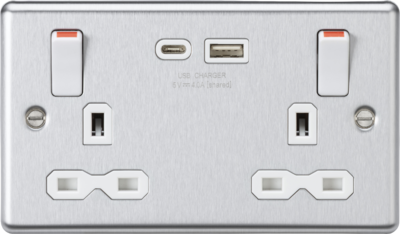

13A 2G DP Socket Dual USB A+C Urea Outboard Rockers with Red Flash - Brushed Chrome w/white insert
| MLA PART CODE | CL9941BCWUR |
|---|---|
| DESCRIPTION | 13A 2G DP Socket Dual USB A+C Urea Outboard Rockers with Red Flash - Brushed Chrome w/white insert |
| NET WEIGHT (KG) | 0.225 |
| FINISH | Brushed Chrome |
| INSERT COLOUR | White |
| DIMENSIONS (MM) | Height - 85.75 Width - 85.75 Depth - 34.4 Projection - 12.9 Recessed Depth - 21.5 |
| MINIMUM MOUNTING BOX DEPTH | 25mm |
| CONSTRUCTION | Construction - 304 Stainless steel |
| CLASS | I |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SWITCH TYPE | Double Pole |
| EARTH TERMINAL | Yes |
| LOAD/MAX. LOAD | 13A |
| TERMINAL TYPE | Captive |
| TERMINAL CAPACITY | 2 x 2.5mm² or 1 x 4.0mm² |
| NO. OF USB PORTS | 2 |
| NO. OF TYPE-A PORTS | 1 |
| NO. OF TYPE-C PORTS | 1 |
| USB CHARGING | 5V DC 4.0A (shared) |
| ADDITIONAL FEATURES | Thermoset Resin Outboard Rockers with Red Flash |
| WARRANTY | 2year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 1363-2 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270891584 |
Date Created: 24/03/2026 16:42
