DATASHEET
SPKEVFPIR

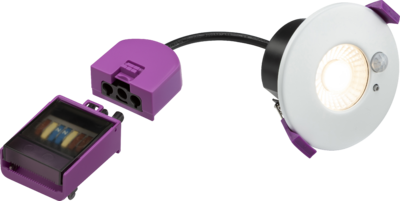

SpektroLED Evo IP65 7W 4 x CCT Fire-rated Downlight with PIR Sensor - Fixed
| MLA PART CODE | SPKEVFPIR |
|---|---|
| DESCRIPTION | SpektroLED Evo IP65 7W 4 x CCT Fire-rated Downlight with PIR Sensor - Fixed |
| NET WEIGHT (KG) | 0.25 |
| FINISH | White |
| DIFFUSER | Prismatic |
| DIMENSIONS (MM) | Diameter - 90 Height - 44 Recessed Depth - 43 Minimum Void - 50 |
| CUT-OUT (MM) | Cut-out Diameter - 70 |
| CONSTRUCTION | Construction - Pressed steel |
| CLASS | II |
| IP RATING | IP65 (IP20 from above) |
| WATTAGE (W) | 7 |
| LAMP TECHNOLOGY | SMD LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 650/680/745/700 |
| LUMENS LIGHT SOURCE ONLY (LM) | 750 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 103 |
| CIRCUIT WATTAGE (W) | 7.262 |
| CCT | 2700/3000/4000/6000K |
| LIGHT COLOUR | CCT |
| CRI | >80 |
| RUNNING CURRENT (A) | 0.039 |
| SVM | 0.005 |
| PST-LM | 0.044 |
| BEAM ANGLE (DEGREES) | 60 |
| LIFE SPAN (HRS) | 50,000 |
| L70B10 LIFESPAN (HRS) | 50,000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| FIRE-RATED | Tested to 30/60/90 minutes |
| I-JOIST RATED | 30 minutes |
| WEB-JOIST RATED | 30 minutes |
| IC RATED | Yes |
| ACOUSTIC RATED | Yes |
| OPERATING TEMPERATURE | 25°C |
| INPUT VOLTAGE | 230V 50Hz |
| SENSOR TYPE | PIR |
| SENSOR DETECTION ANGLE (DEGREES) | 30 - 60 |
| OPTIMUM DETECTION RANGE (M) | 5 |
| SENSOR DURATION | 5seconds - 10mins |
| SENSOR LUX SETTINGS | 0lx - 1000lx |
| WARRANTY | 7year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60598 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270895346 |
