| MLA PART CODE | OPPIRS |
|---|---|

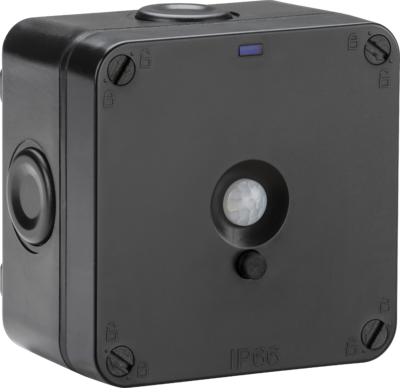

| DESCRIPTION | IP66 PIR Sensor with Photocell and Override |
| NET WEIGHT (KG) | 0.16 |
| FINISH | Black |
| DIMENSIONS (MM) | Height - 90.5 Width - 90.5 Depth - 65.9 Projection - 65.9 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP66 |
| IK RATING | IK06 |
| INPUT VOLTAGE | 230V 50Hz |
| NEON INDICATOR | Yes |
| LOAD/MAX. LOAD | 400W Incandescent, 200W LED |
| TERMINAL TYPE | Captive |
| TERMINAL CAPACITY | 2 x 1.0mm² or 2 x 1.5mm² |
| CABLE ENTRY (MM) | 6 x 20, 1 x 25 |
| CABLE GLAND INCLUDED | No |
| SENSOR TYPE | PIR+Photocell |
| SENSOR OVERRIDE | Yes |
| SENSOR DETECTION ANGLE (DEGREES) | 120 |
| OPTIMUM DETECTION RANGE (M) | 5 |
| SENSOR DURATION | 3 mins |
| WARRANTY | 2year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270894097 |
