30A Junction box
- 30A rated
- Selective entry
- 3 terminals
- 89mm diameter
- White
- Urea constructed outer casing
- Certified to BS EN 60670
NB: This product is supplied in a multipack but is individually bagged and barcoded for easy distribution
| Unit Barcode | 5055832955405 |
|---|---|
| Inner Carton Quantity | 10 |
| Inner Carton Weight | 1.6 Kg |
| Inner Carton Length | 19.5 cm |
| Inner Carton Width | 17.5 cm |
| Inner Carton Height | 9.3 cm |
| Inner Carton Barcode | 5055832955412 |
| Outer Carton Quantity | 100 |
| Outer Carton Weight | 16.00 Kg |
| Outer Carton Length | 48.5 cm |
| Outer Carton Width | 20.5 cm |
| Outer Carton Height | 37 cm |
| Outer Carton Volume | 0.036800 m3 |
| Outer Carton Barcode | 5055832955429 |
| Diameter | 89 mm |
|---|---|
| Projection | 26 mm |
| Construction | Thermoset resin |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Warranty | 25 |
|---|

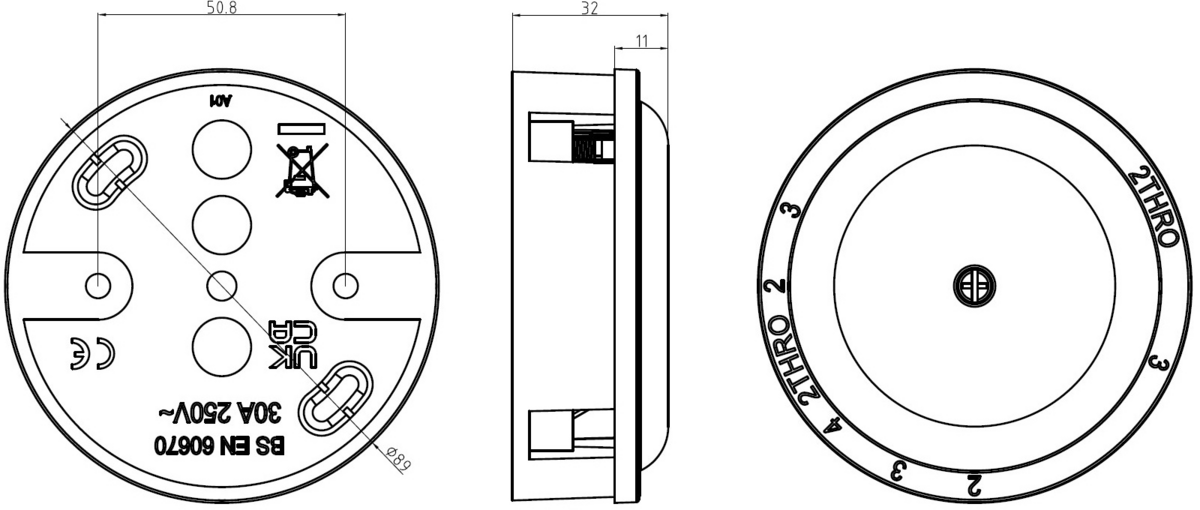

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536 9095 00 |
|---|
