230V IP65 5W recessed fire-rated LED dimmable downlight - 3000K
- Complete with driver
- Loop in/loop out
- Push-fit terminals
- Dimmable*

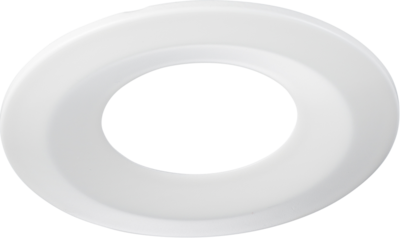

- Complete with interchangeable flat white bezel
- IC rated, Tested to 30, 60 and 90 minutes fire-rated -Solid Wood Joists
- High lumen output
- 3 year warranty
3000K, warm white, 565lm
Cut out 72mm
45° beam angle
*Recommended to be used with Trailing Edge dimmers - please check compatibility before installation
| Unit Barcode | 5056270800623 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.265 Kg |
| Inner Carton Length | 9.7 cm |
| Inner Carton Width | 9.7 cm |
| Inner Carton Height | 9.5 cm |
| Inner Carton Barcode | 5056270800623 |
| Outer Carton Quantity | 20 |
| Outer Carton Weight | 6.5 Kg |
| Outer Carton Length | 50 cm |
| Outer Carton Width | 21.0 cm |
| Outer Carton Height | 20.5 cm |
| Outer Carton Volume | 0.021500 m3 |
| Outer Carton Barcode | 5056270800647 |
| Diameter | 85 mm |
|---|---|
| Projection | 6 mm |
| Recessed Depth | 67 mm |
| Minimum Void | 120 mm |
| Cut-out Diameter | 72 mm |
| Construction | Aluminium |
|---|---|
| Construction 2 | & polycarbonate |
| Finish | White |
| Class | I |
| IP Rating | IP65 (IP20 from above) |
| Primary Voltage | 230V 50Hz |
| Diffuser | Clear |
|---|
| Light Technology | SMD LED |
|---|---|
| Dimmable | Yes* |
| Dimmable packaging text | * Please check compatibility before installation |
| Wattage (kWh/1000h) | 5 W |
| Energy efficiency class | C |
| CCT #1 | 3000 K |
| L70B50 | 54,000 |
| Lamp Included | Yes |
| Beam Angle | 45 ° |
| Light Colour | Warm White |
|---|---|
| Lumens | 565 lm |
| Lumens (Light source only) | 810 lm |
| Efficacy (Light source) | 148.9 lm/W |
| CRI | >80 |
| Warranty | 3 |
|---|
| Line Drawing 1 |  |
|---|
| Commodity Code | 9405423990 |
|---|---|
| Dismantling Procedure | Downlight RWxxx Dismantling Procedure.pdf |
