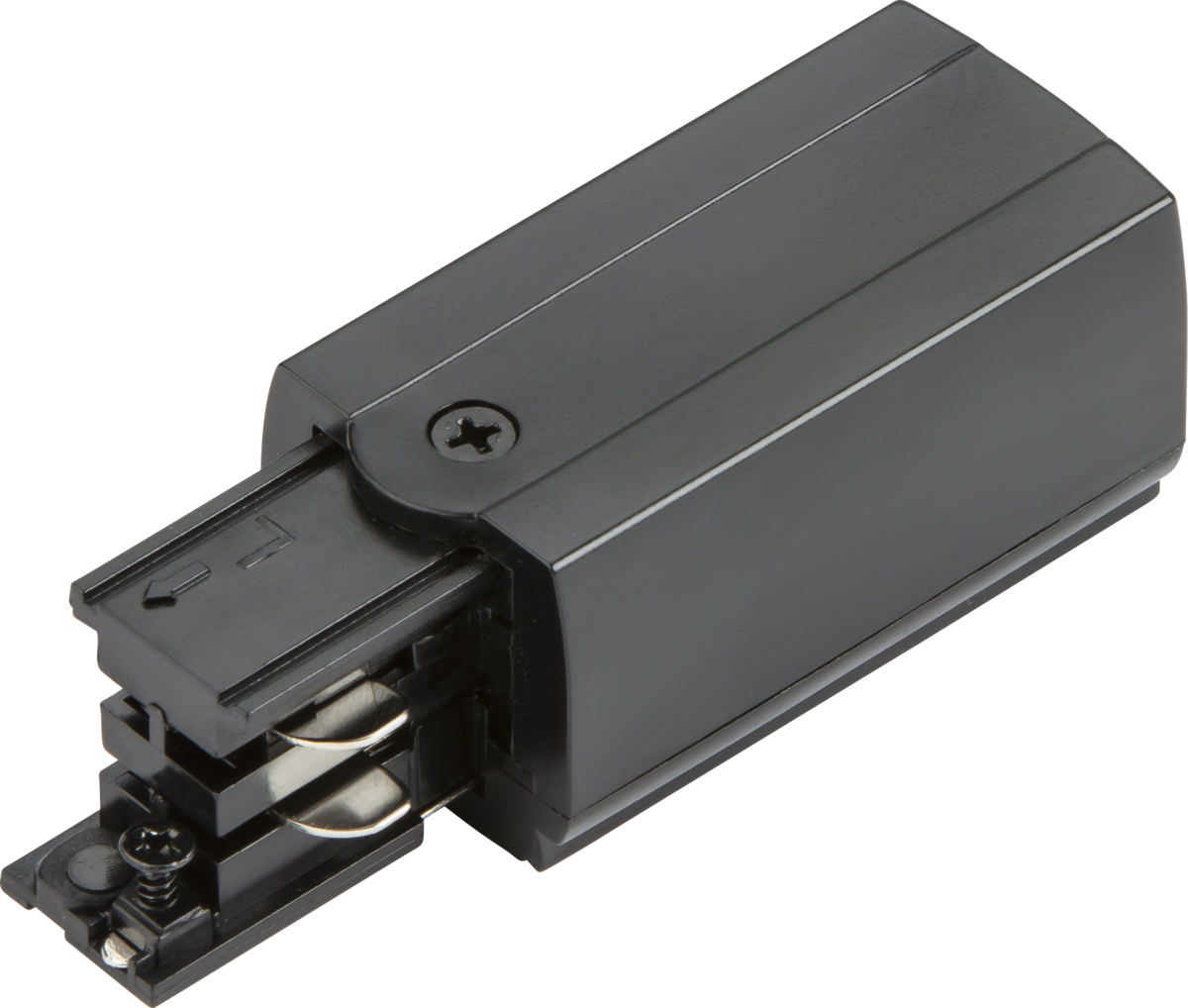

Introducing K-LINE 3-circuit track system, designed for efficient and versatile lighting solutions in commercial spaces. The 3-circuit track system provides flexible lighting control, allowing independent operation of three separate circuits, perfect for customizing illumination to suit different areas or moods within your space.
The 3-circuit track offer consist of matt black or matt white finish.
- Compatible with K-LINE (KLxx) 3 circuit series track system
- Left Power feed connector
*Please check track design to ensure the correct polarity connectors are used.
| Unit Barcode | 5056270860443 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.064 Kg |
| Inner Carton Length | 10.1 cm |
| Inner Carton Width | 35.4 cm |
| Inner Carton Height | 3.2 cm |
| Inner Carton Barcode | 5056270860443 |
| Outer Carton Quantity | 70 |
| Outer Carton Weight | 5.04 Kg |
| Outer Carton Length | 29 cm |
| Outer Carton Width | 22.5 cm |
| Outer Carton Height | 23.5 cm |
| Outer Carton Volume | 0.015300 m3 |
| Outer Carton Barcode | 5056270893564 |
| Length | 98.5 mm |
|---|---|
| Width | 35 mm |
| Depth | 32.5 mm |
| Construction | Polycarbonate |
|---|---|
| Construction 2 | & copper |
| Finish | Black |
| Class | I |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Warranty | 5 |
|---|

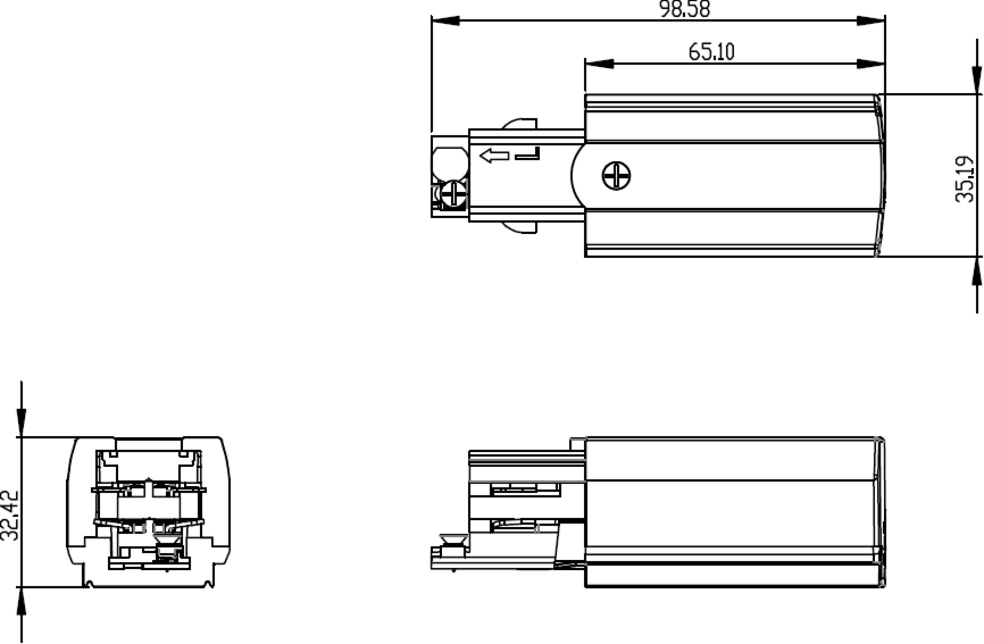

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536901000 |
|---|
