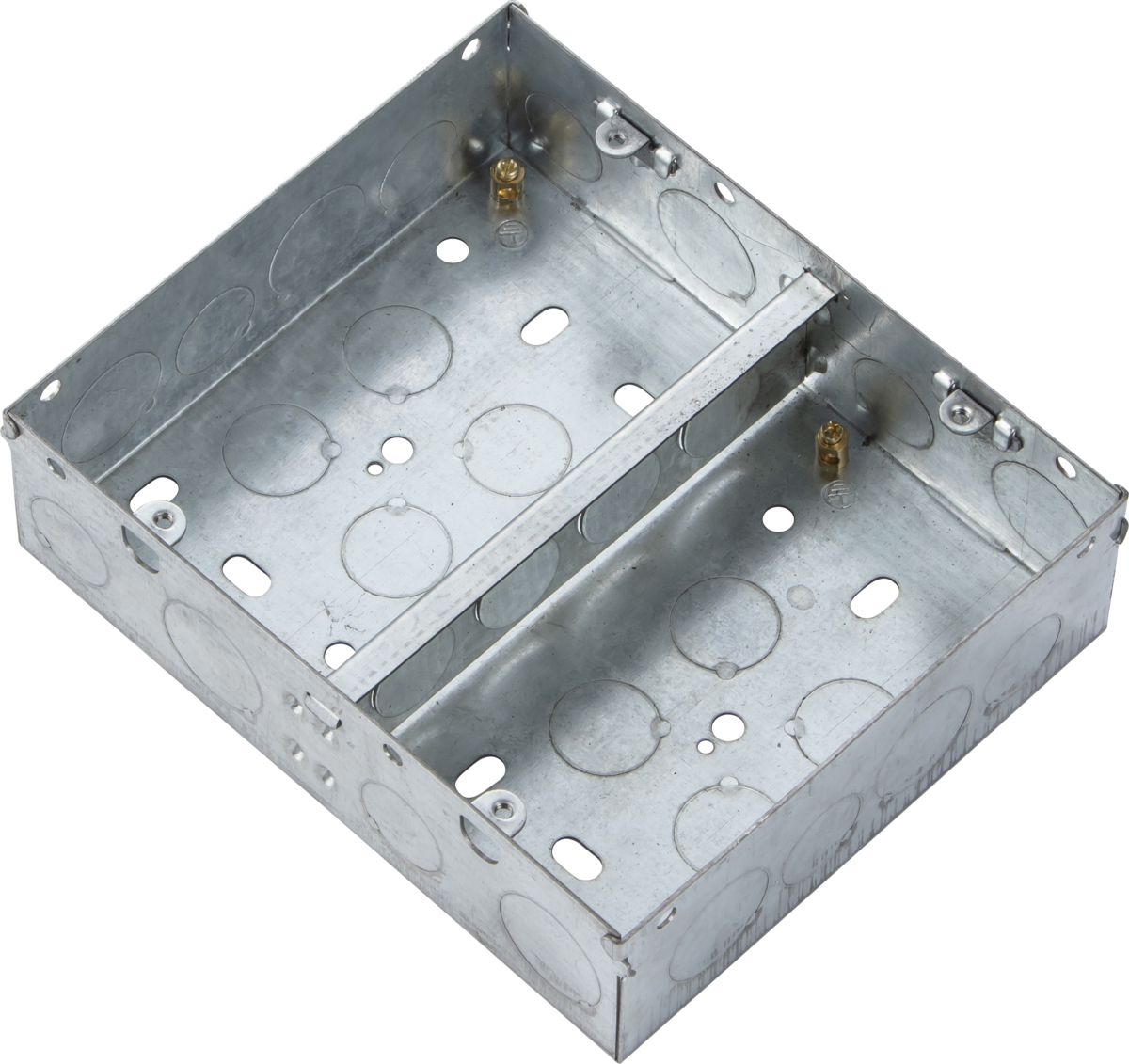

Designed for use with Knightsbridge Small Multimedia Combination Plates. Galvanized steel construction 1mm thickness (+/- 1%)
- Single cavity
- Two fixed mounting lugs and two adjustable mounting lugs
- With 2 x earth terminals
- With separator channel
- With mix of 20mm and 25mm knockouts
- 47mm deep
- Overall dimensions: H: 157mm W: 130mm
- Manufactured to EN 60670
| Unit Barcode | 5061061272107 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.4 Kg |
| Inner Carton Length | 16 cm |
| Inner Carton Width | 13.2 cm |
| Inner Carton Height | 50 cm |
| Inner Carton Barcode | 5061061272107 |
| Outer Carton Quantity | 20 |
| Outer Carton Weight | 9.5 Kg |
| Outer Carton Length | 34.5 cm |
| Outer Carton Width | 29.5 cm |
| Outer Carton Height | 30.3 cm |
| Outer Carton Volume | 0.030800 m3 |
| Outer Carton Barcode | 5061061272114 |
| Height | 157 mm |
|---|---|
| Width | 130 mm |
| Depth | 47 mm |
| Construction | Steel |
|---|---|
| IP Rating | IP20 |
| Earth Terminal | Yes |
|---|
| Warranty | 25 |
|---|

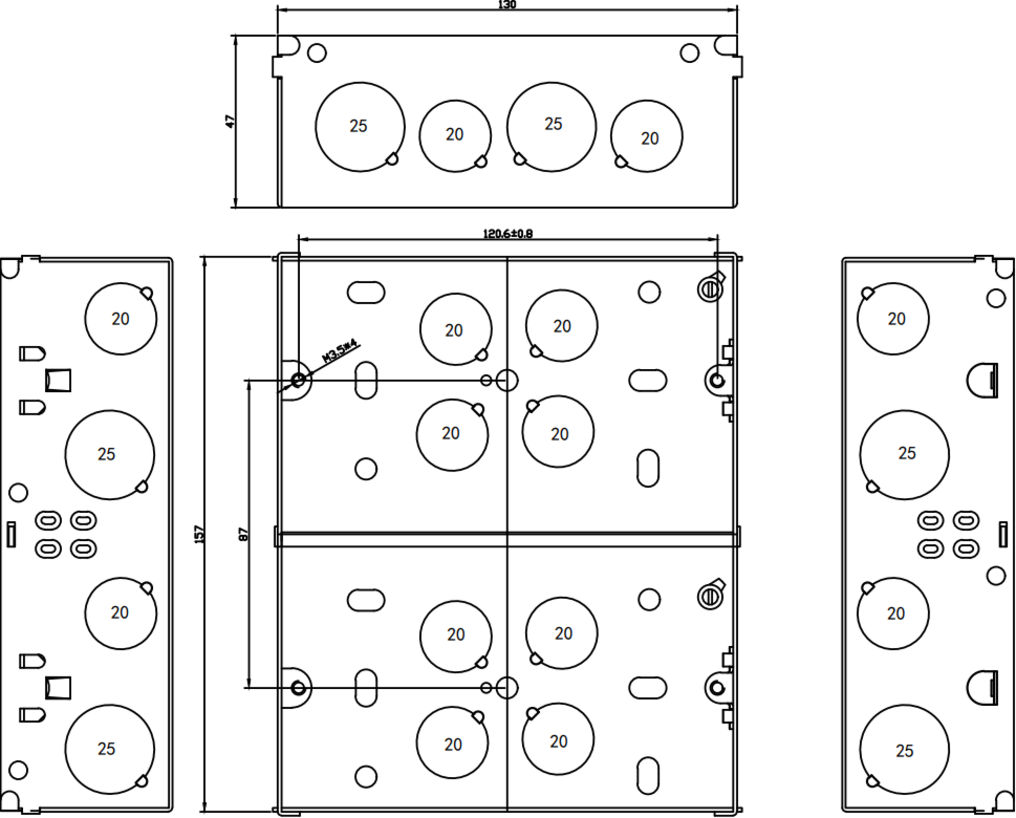

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536 309 090 |
|---|
