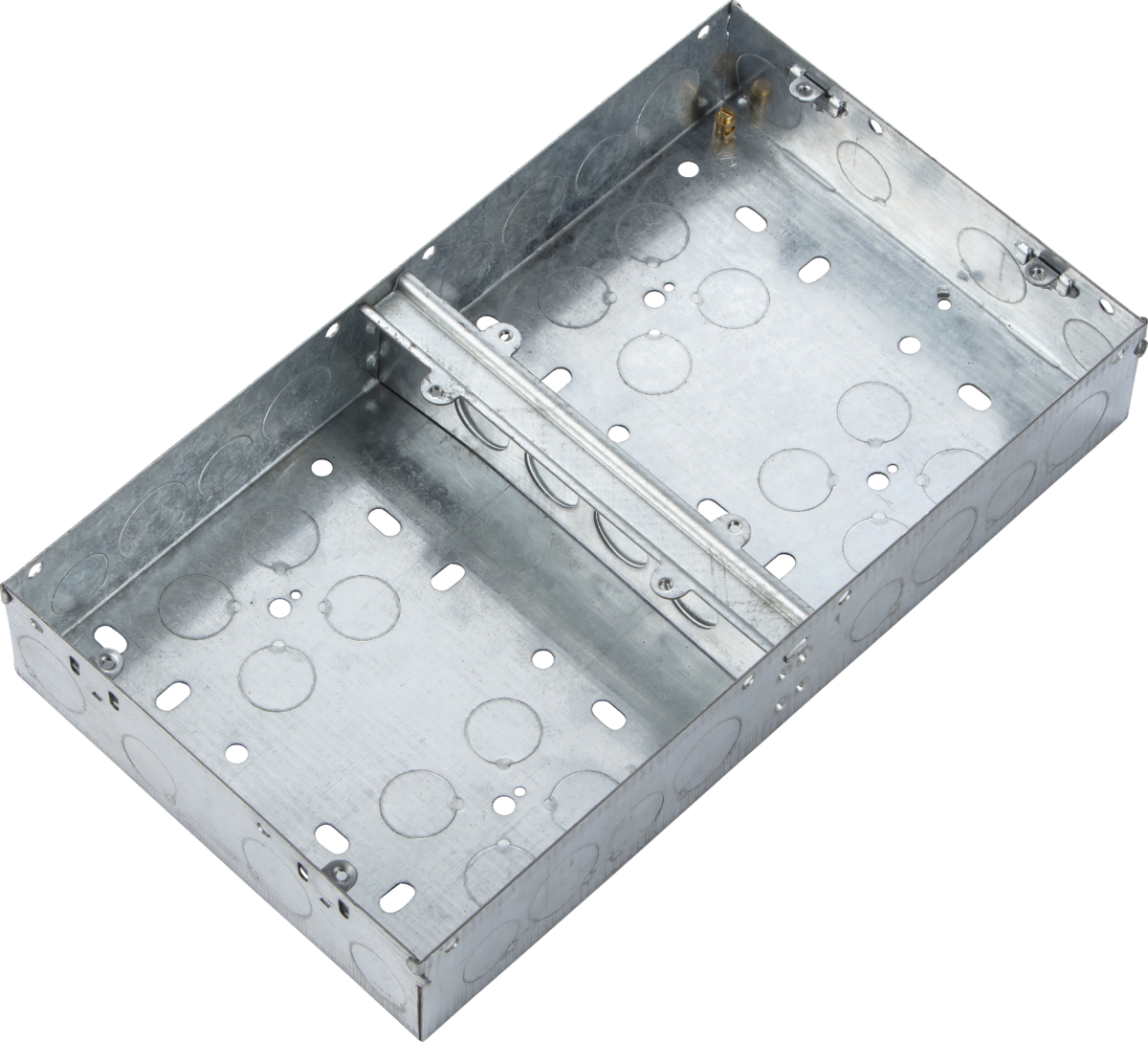

Designed for use with Knightsbridge Multimedia Combination Plates. Galvanized steel construction 1mm thickness (+/- 1%)
- Single cavity
- Four fixed mounting lugs and four adjustable mounting lugs
- With 2 x earth terminals
- With separator channel
- With mix of 20mm and 25mm knockouts
- 47mm deep
- Overall dimensions: H: 159mm W: 279mm
- Manufactured to EN 60670
| Unit Barcode | 5061061272121 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.75 Kg |
| Inner Carton Length | 28 cm |
| Inner Carton Width | 16 cm |
| Inner Carton Height | 5 cm |
| Inner Carton Barcode | 5061061272121 |
| Outer Carton Quantity | 10 |
| Outer Carton Weight | 10 Kg |
| Outer Carton Length | 33 cm |
| Outer Carton Width | 26 cm |
| Outer Carton Height | 29 cm |
| Outer Carton Volume | 0.024900 m3 |
| Outer Carton Barcode | 5061061272138 |
| Height | 159 mm |
|---|---|
| Width | 279 mm |
| Depth | 47 mm |
| Construction | Steel |
|---|---|
| IP Rating | IP20 |
| Earth Terminal | Yes |
|---|
| Warranty | 25 |
|---|

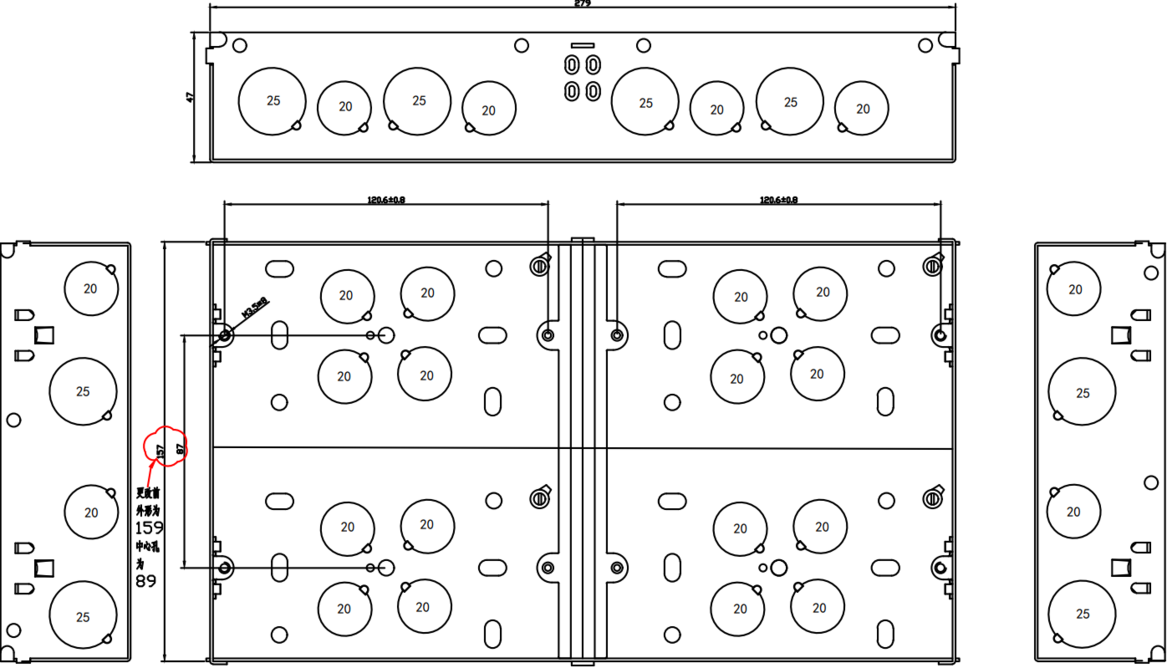

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536 309 090 |
|---|
