Enhance your spaces with precision and versatility with Knightsbridge's quad wattage and 3 x CCT asymmetric wall pack. Design for maximum performance, flexibility and durability, tailored for optimal lighting needs. Constructed from robust polycarbonate material, body and diffuser, the wall pack aims to withstand corrosion, a reliable choice for exterior application; including perimeter lighting, pathways, car parks and high traffic areas.
- IK10 rated
- IP65 rated
- Quad wattage selection (14W / 17W / 21W / 24W)
- Tri CCT selection (3000K / 4000K / 6000K)
- Complete with Photocell sensor (can be disconnected if not required)
- Side and rear cable entry
- Robust polycarbonate construction, body and diffuser
| Unit Barcode | 5061061276419 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 1.3 Kg |
| Inner Carton Length | 32 cm |
| Inner Carton Width | 17.5 cm |
| Inner Carton Height | 23 cm |
| Inner Carton Barcode | 5061061276419 |
| Outer Carton Quantity | 10 |
| Outer Carton Weight | 14 Kg |
| Outer Carton Length | 99 cm |
| Outer Carton Width | 33.5 cm |
| Outer Carton Height | 49.5 cm |
| Outer Carton Volume | 0.164200 m3 |
| Outer Carton Barcode | 5061061276747 |
| Height | 217 mm |
|---|---|
| Width | 309 mm |
| Projection | 162 mm |
| Construction | Polycarbonate |
|---|---|
| Finish | Black |
| IP Rating | IP65 |
| Primary Voltage | 230V 50Hz |
| Diffuser | Clear |
|---|
| Light Technology | SMD LED |
|---|---|
| Dimmable | No |
| Wattage (kWh/1000h) | 14/17/21/24 W |
| Energy efficiency class | E |
| CCT #1 | 3000/4000/6000 K |
| L70B50 | 50,000 |
| Lamp Included | Yes |
| Max. Wattage | 24 W |
| Beam Angle | 150 ° |
| Light Colour | CCT |
|---|---|
| Lumens | 1755/2110/2545/2830/1865/2230/2710/3095/1800/2170/2600/2955 lm |
| Lumens (Light source only) | 1990/2410/2910/3320/2145/2595/3125/3565/2045/2490/3015/3445 lm |
| Efficacy (Light source) | 143 lm/W |
| CRI | >85 |
| Photometric LDT | WPASCWA - LDT files.zip |
| Driver Type | Constant Current |
|---|
| Warranty | 5 |
|---|

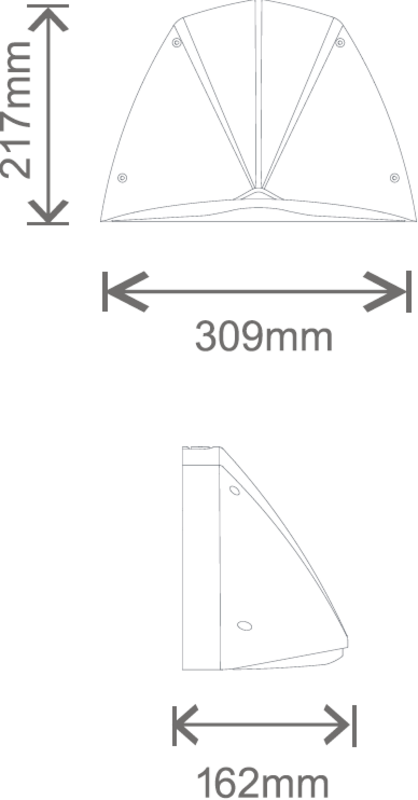

| Line Drawing 1 |  |
|---|
| Commodity Code | 9405423990 |
|---|
