- Metal frame construction with an interchangeable polycarbonate legend
- Lithium (LiFePO4) battery
- Supplied as standard with Arrow Up legend
- Full range of legends available separately
| Unit Barcode | 5061061277201 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 1.61 Kg |
| Inner Carton Length | 40 cm |
| Inner Carton Width | 20.5 cm |
| Inner Carton Height | 7 cm |
| Inner Carton Barcode | 5061061277201 |
| Outer Carton Quantity | 6 |
| Outer Carton Weight | 10.2 Kg |
| Outer Carton Length | 42.5 cm |
| Outer Carton Width | 41.5 cm |
| Outer Carton Height | 23 cm |
| Outer Carton Volume | 0.040600 m3 |
| Outer Carton Barcode | 5061061277218 |
| Length | 390 mm |
|---|---|
| Height | 190 mm |
| Projection | 60 mm |
| Construction | Pressed steel |
|---|---|
| Finish | Black |
| Class | I |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Emergency | Maintained / Non-maintained / Switched |
|---|
| Light Technology | SMD LED |
|---|---|
| Dimmable | No |
| Wattage (kWh/1000h) | 6 W |
| CCT #1 | 6000 K |
| L70B50 | 35000 |
| Lamp Included | Yes |
| Beam Angle | 100 ° |
| Light Colour | Daylight |
|---|---|
| Lumens | 160 lm |
| Lumens (Em. mode) | 125 lm |
| Max Viewing Distance (Em. Sign) | 24 m |
| Photometric LDT | EMRUNLT - LDT files.zip |
| Warranty | 3 |
|---|---|
| Warranty Information | (including battery) |

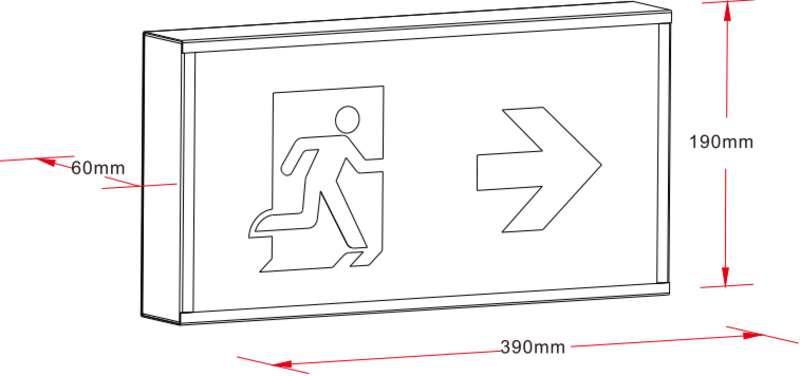

| Line Drawing 1 |  |
|---|
| Commodity Code | 9405423990 |
|---|
