These dimmers are for use with high frequency ballast or LED drivers that use a 1-10V DC control input, use the rotary action to control the brightness and push on/off to switch mains power on/off. The brightness control and mains switches are electrically isolated.

6AX 250V
2-way
1-10V
Push On/Off, rotary dimming action
For dimmable ballast or LED drivers with 1-10V DC control input

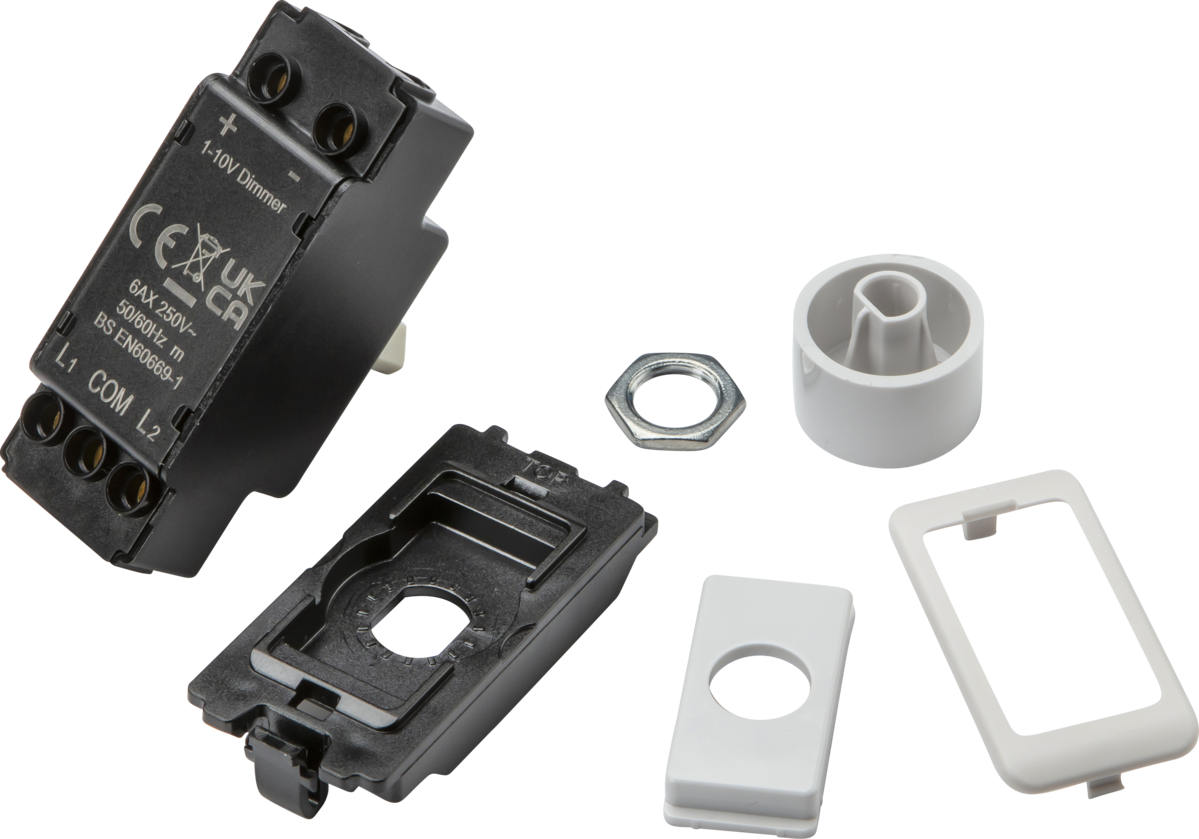

Supplied with a Curved Edge Grid Adaptor kit so that it can be used within that system or with our range of unpopulated dimmer plates

NB: For use with 1-10V ballasts/drivers only. Check the in-rush current for LED lamps or drivers does not exceed 6A, and the rating on the control signal side of the ballast/driver does not exceed 50mA before connecting. Fit inrush current limiters where necessary. Do not overload.

Download

Unit Barcode	5061061277522
Inner Carton Quantity	5
Inner Carton Weight	0.16 Kg
Inner Carton Length	16.5 cm
Inner Carton Width	8.5 cm
Inner Carton Height	7 cm
Inner Carton Barcode	5061061277546
Outer Carton Quantity	50
Outer Carton Weight	2 Kg
Outer Carton Length	37 cm
Outer Carton Width	18 cm
Outer Carton Height	18 cm
Outer Carton Volume	0.012000 m³
Outer Carton Barcode	5061061277553

Height	59.8 mm
Width	23 mm
Depth	40.5 mm
Projection	18 mm
Recessed Depth	22.5 mm

Construction	PA
Finish	Black
IP Rating	IP20
Primary Voltage	230V 50Hz

Terminal	Screw

Warranty	2

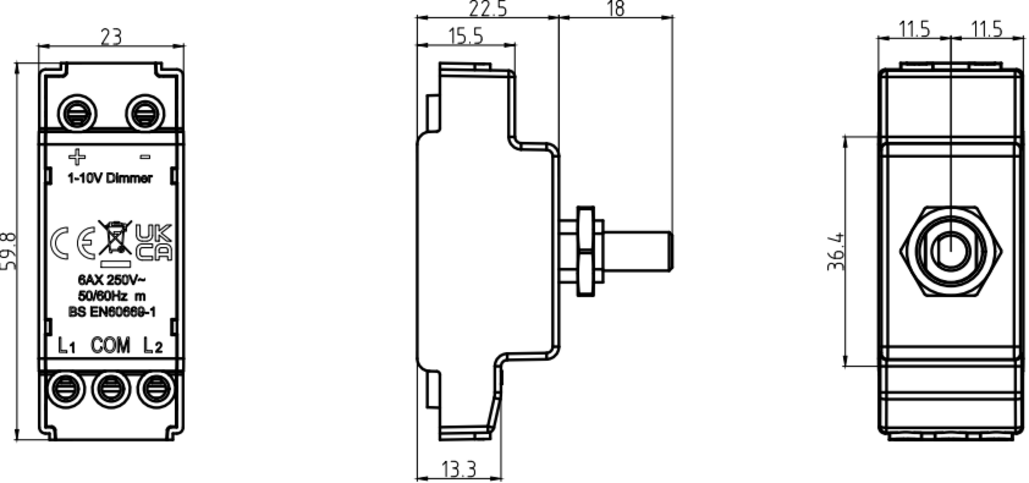

Line Drawing 1	Download

Commodity Code	8536508000

6AX 2-way 1-10V Dimmer Module

CU110V
