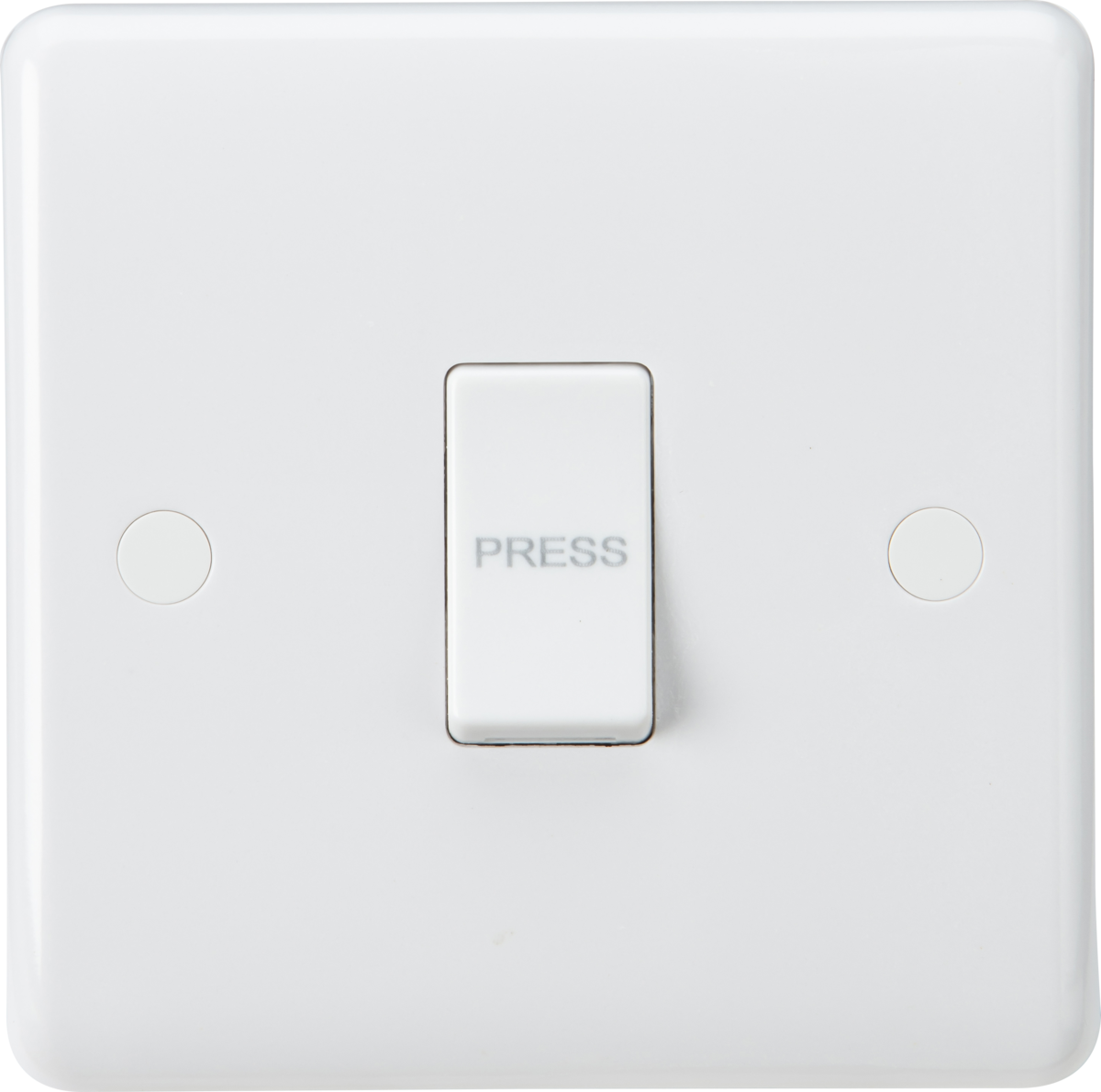

Gently contoured 7mm plate with rounded edges and anti-microbial properties. Retractive switches have a mechanism that returns the switch to its original position once depressed. They are often used in commercial environments for operating door openings or bell systems, as the switch is only "ON" whilst the button is pressed. They can also be used as lighting control points for On/Off and dimming (press and hold) when used in conjunction with a dimming pack or compatible module built into the luminaire.
- 10AX
- Single Pole
- 2-Way
- Retractive or "Push to make"
| Unit Barcode | 5061061278963 |
|---|---|
| Inner Carton Quantity | 10 |
| Inner Carton Weight | 0.647 Kg |
| Inner Carton Length | 18.5 cm |
| Inner Carton Width | 14.2 cm |
| Inner Carton Height | 9.3 cm |
| Inner Carton Barcode | 5061061279373 |
| Outer Carton Quantity | 100 |
| Outer Carton Weight | 7 Kg |
| Outer Carton Length | 48.5 cm |
| Outer Carton Width | 29.5 cm |
| Outer Carton Height | 20 cm |
| Outer Carton Volume | 0.028600 m3 |
| Outer Carton Barcode | 5061061279380 |
| Height | 86 mm |
|---|---|
| Width | 86 mm |
| Depth | 24.7 mm |
| Projection | 11.3 mm |
| Recessed Depth | 13.4 mm |
| Min. Mounting Box Depth | 16mm |
| Plate Depth | 7 mm |
| Construction | Thermoset resin |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
|---|
| Warranty | 25 |
|---|
| Line Drawing 1 |  |
|---|
| Commodity Code | 8536508000 |
|---|
