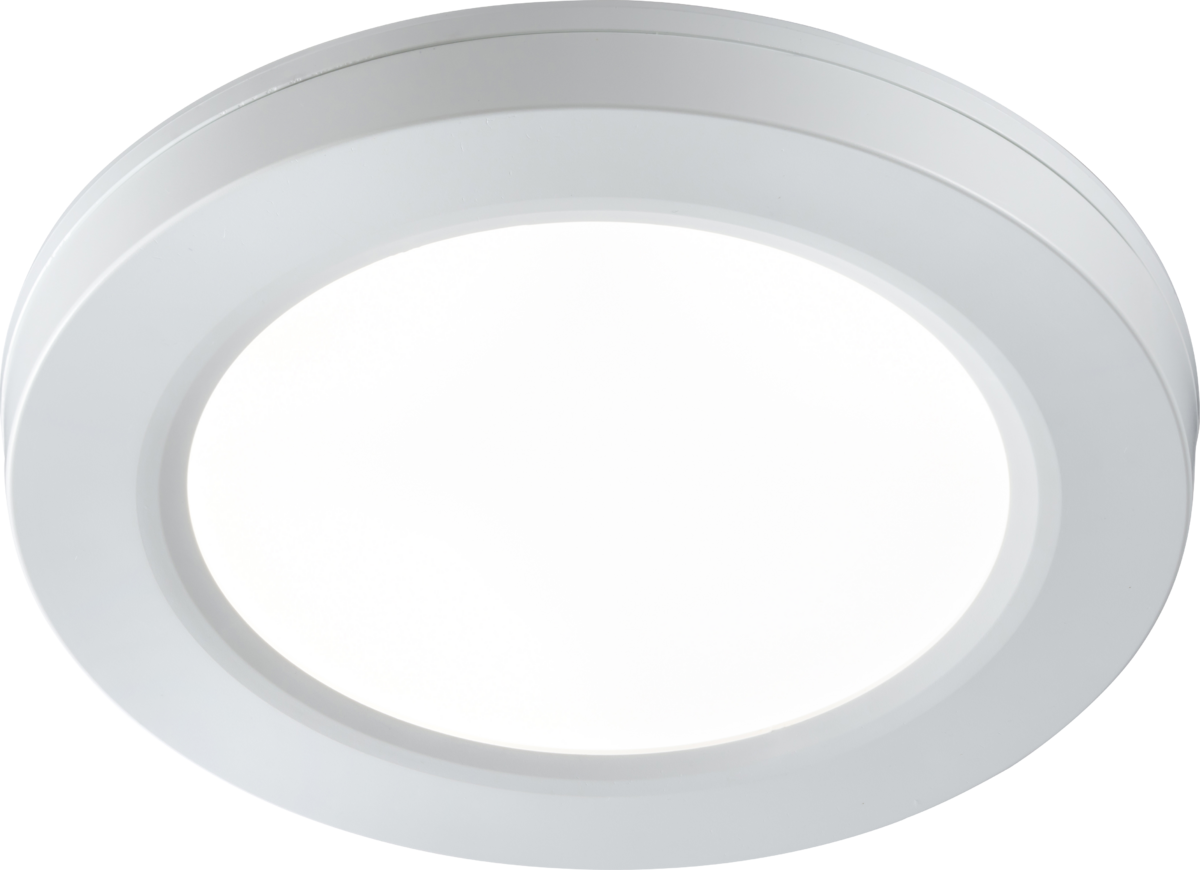

230V IP54 Tri-Wattage and CCT Dual Mount Dimmable LED Panel - 6/9/12W

CPLCW12

Redefine your lighting experience with the evolution of CPL LED Panel downlights. Designed with performance and adaptability in mind, the slim panels offers a range of features which maximise flexibility. The fitting's key feature of dual mount options, seamlessly install it as either a recessed or surface-mounted fixture depending on your space requirements. Alongside dual mount installation, the fittings are dimmable, IP54 rating, as well as wattage and CCT (3000K/ 4000K/ 5700K) selectable, fully adaptable to the ambience and functionality of any room. Ideal for commercial, retail and domestic applications. Fittings are available in 4 sizes and a range of magnetic bezels, it is truly a perfect fit for any installation.

  • Wattage selectable (6/9/12W)
  • CCT adjustable (3000K/ 4000K/ 5700K)
  • Dimmable*
  • IP54 rating
  • Dual mount design: recessed or surface mountable
  • Adjustable recessed bracket, suitable for 65mm to 130mm cut out
  • Fitting comes with white trim as standard. Magnetic bezels available in Matt Black, Polished Chrome and Chrome (sold seperately)
  • Emergency kit available: CPLEM (sold seperately)

*Please check compatibility before installation

GB energy rating labelEU energy rating label
Unit Barcode 5056270885064
Inner Carton Quantity 1
Inner Carton Weight 0.33 Kg
Inner Carton Length 18.1 cm
Inner Carton Width 17.1 cm
Inner Carton Height 3 cm
Inner Carton Barcode 5056270885064
Outer Carton Quantity 10
Outer Carton Weight 3.8 Kg
Outer Carton Length 47 cm
Outer Carton Width 20.5 cm
Outer Carton Height 19 cm
Outer Carton Volume 0.018300 m3
Outer Carton Barcode 5056270884074
Diameter 165 mm
Height 17.6 mm
Projection 17.6 mm
Minimum Void 50 mm
Cut-out Diameter 65-130 mm
Construction Polycarbonate
Finish White
Interchangeable Bezel Magnetic
Class II
IP Rating IP54
Primary Voltage 230V 50Hz
Cable Length 0.3 m
Diffuser Opal
Light Technology SMD LED
Dimmable Yes*
Dimmable packaging text * Please check compatibility before installation
Wattage (kWh/1000h) 6 / 9 / 12 W
Energy efficiency class F
CCT #1 3000/4000/5700 K
L70B50 50,000
Lamp Included Yes
Beam Angle 110 °
Light Colour CCT
Lumens 550/580/550/880/880/820/1165/1165/1060 lm
Lumens (Light source only) 1585 lm
Efficacy (Light source) 125 lm/W
CRI >80
Warranty 5
Commodity Code 9405423990
