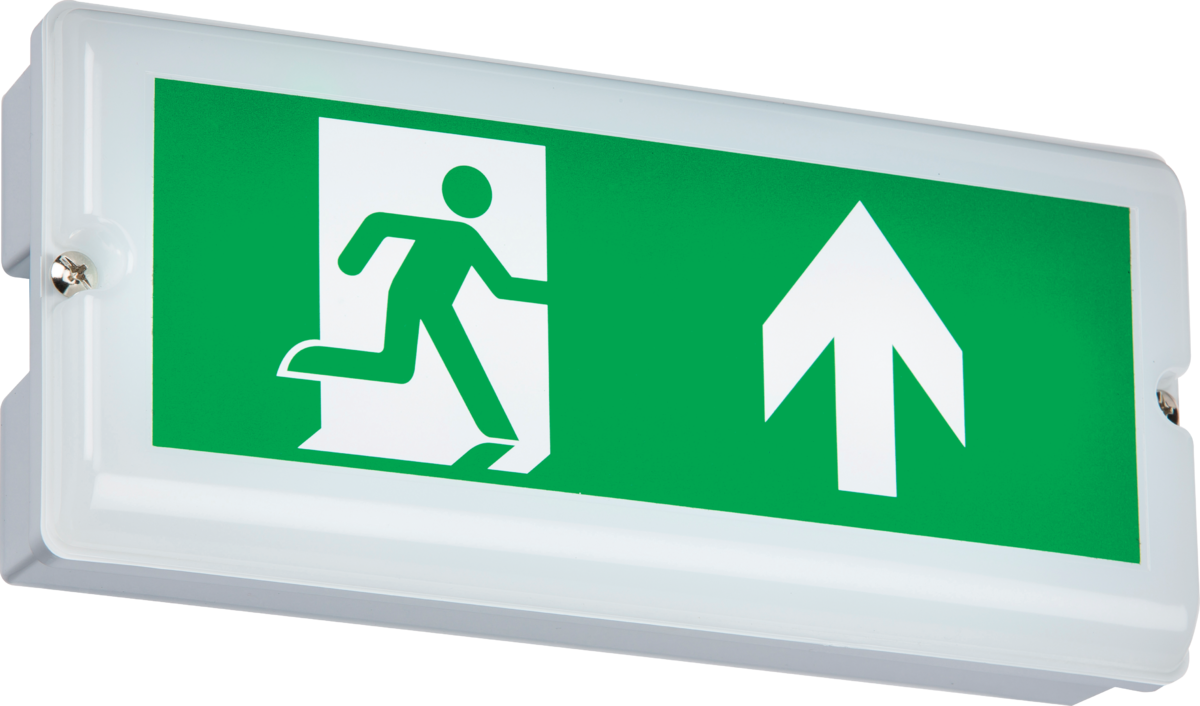

Low-profile bulkhead is designed for both maintained and non-maintained operation, offering flexible emergency lighting solutions. Powered by an efficient lithium battery, it provides reliable performance with longer lifespan and quicker charge times. Ideal for corridors, stairwells, and exit routes, the compact design blends discreetly into any environment while delivering essential illumination
- LiFePO4 (Lithium) battery
- Low profile, ultra slim design
- 3 Hour maintained or non-maintained use
- Manufactured from polycarbonate
- Complete with 2 diffusers (prismatic and opal) and legend plates
- Hinged screwless gear tray
6000K, up to 175lm (diffuser dependent)
| Unit Barcode | 5056270885736 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.52 Kg |
| Inner Carton Length | 10.5 cm |
| Inner Carton Width | 7.3 cm |
| Inner Carton Height | 33.5 cm |
| Inner Carton Barcode | 5056270885736 |
| Outer Carton Quantity | 20 |
| Outer Carton Weight | 11 Kg |
| Outer Carton Length | 44 cm |
| Outer Carton Width | 38 cm |
| Outer Carton Height | 24 cm |
| Outer Carton Volume | 0.040100 m3 |
| Outer Carton Barcode | 5056270890266 |
| Length | 216 mm |
|---|---|
| Height | 48 mm |
| Width | 97 mm |
| Projection | 48 mm |
| Construction | Polycarbonate |
|---|---|
| Finish | White |
| Class | II |
| IP Rating | IP65 |
| Primary Voltage | 230V 50Hz |
| Diffuser | Prismatic or Opal |
|---|---|
| Emergency | Maintained / Non-maintained / Switched |
| Light Technology | SMD LED |
|---|---|
| Dimmable | No |
| Wattage (kWh/1000h) | 4 W |
| CCT #1 | 6500 K |
| L70B50 | 55,000 |
| Lamp Included | Yes |
| Beam Angle | 115 ° |
| Light Colour | Daylight |
|---|---|
| Lumens | 175 lm |
| Lumens (Em. mode) | 175 lm |
| Efficacy (Light source) | 38.18 lm/W |
| CRI | >70 |
| Warranty | 3 |
|---|---|
| Warranty Information | Including battery |

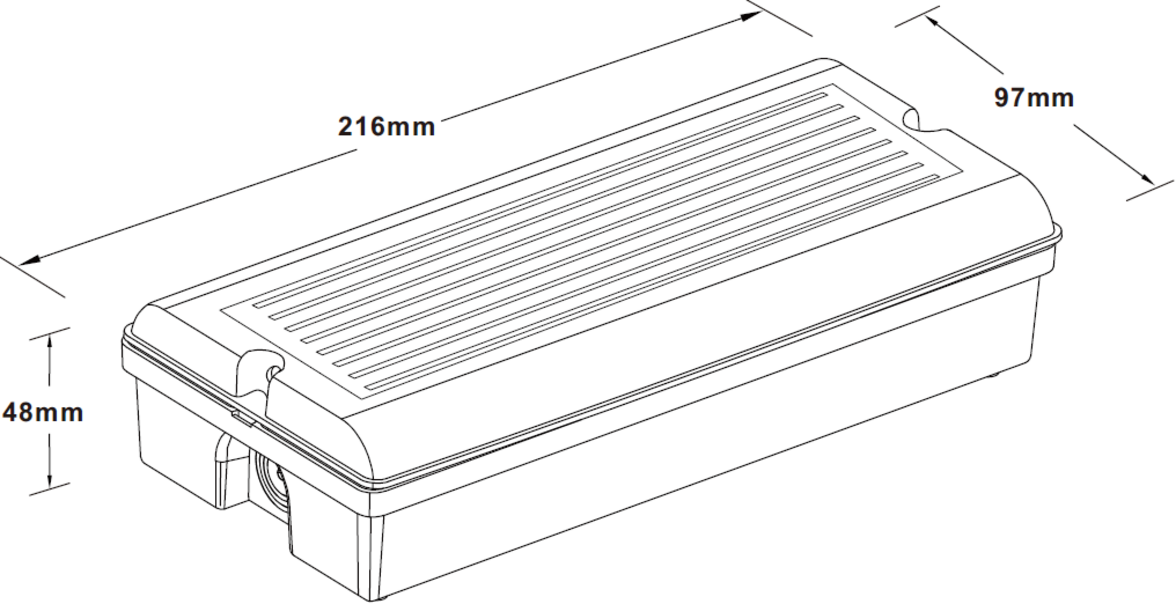

| Line Drawing 1 |  |
|---|
| Commodity Code | 9405612090 |
|---|
