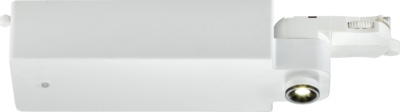

Eclipse 3-circuit track system LED Emergency spotlight. Designed to offer an efficient and versatile lighting system solution in commercial spaces. Eclipse is a non-maintained emergency fitting, offering illumination at the event of a power failure. Powered by an efficient lithium battery, it provides reliable performance with longer lifespan and quicker charge times.

Dual features, 2 in 1 design, allows emergency pack to be selectable between Self-test or Manual mode, via an internal DIP switch.

Ideal for retail stores, galleries and office environments; 3-circuit track system offers independent operation of three separate circuits, perfect for customizing illumination to suit different areas or moods within your space.

Compatible with Knightsbridge K-LINE Track system
2 in 1 design, selectable Self-test or Manual mode via internal DIP switch
LiFePO4 (Lithium) battery
Independent circuit selection switch
Robust polycarbonate construction
6000K

Download

Unit Barcode	5056270890594
Inner Carton Quantity	1
Inner Carton Weight	0.3 Kg
Inner Carton Length	9 cm
Inner Carton Width	9.5 cm
Inner Carton Height	20.5 cm
Inner Carton Barcode	5056270890594
Outer Carton Quantity	20
Outer Carton Weight	6.5 Kg
Outer Carton Length	47 cm
Outer Carton Width	22 cm
Outer Carton Height	40 cm
Outer Carton Volume	0.041400 m³
Outer Carton Barcode	5056270890624

Length	230 mm
Height	72 mm
Width	65 mm
Projection	42.7 mm

Construction	Polycarbonate
Finish	Matt Black
Class	I
IP Rating	IP20
Primary Voltage	230V 50Hz

Emergency	Non-maintained only

Light Technology	LED
Dimmable	No
Wattage (kWh/1000h)	3 W
CCT #1	6000 K
L70B50	55,000
Max. Wattage	3 W
Lamp Included	Yes
Beam Angle	80 °

Light Colour	Daylight
Lumens (Em. mode)	150 lm

Warranty	5
Warranty Information	including battery

Line Drawing 1	Download

Commodity Code	9405612090

ECLIPSE 230V 3W 3-Circuit Track Emergency Spotlight - Matt Black

ECLEMBK
