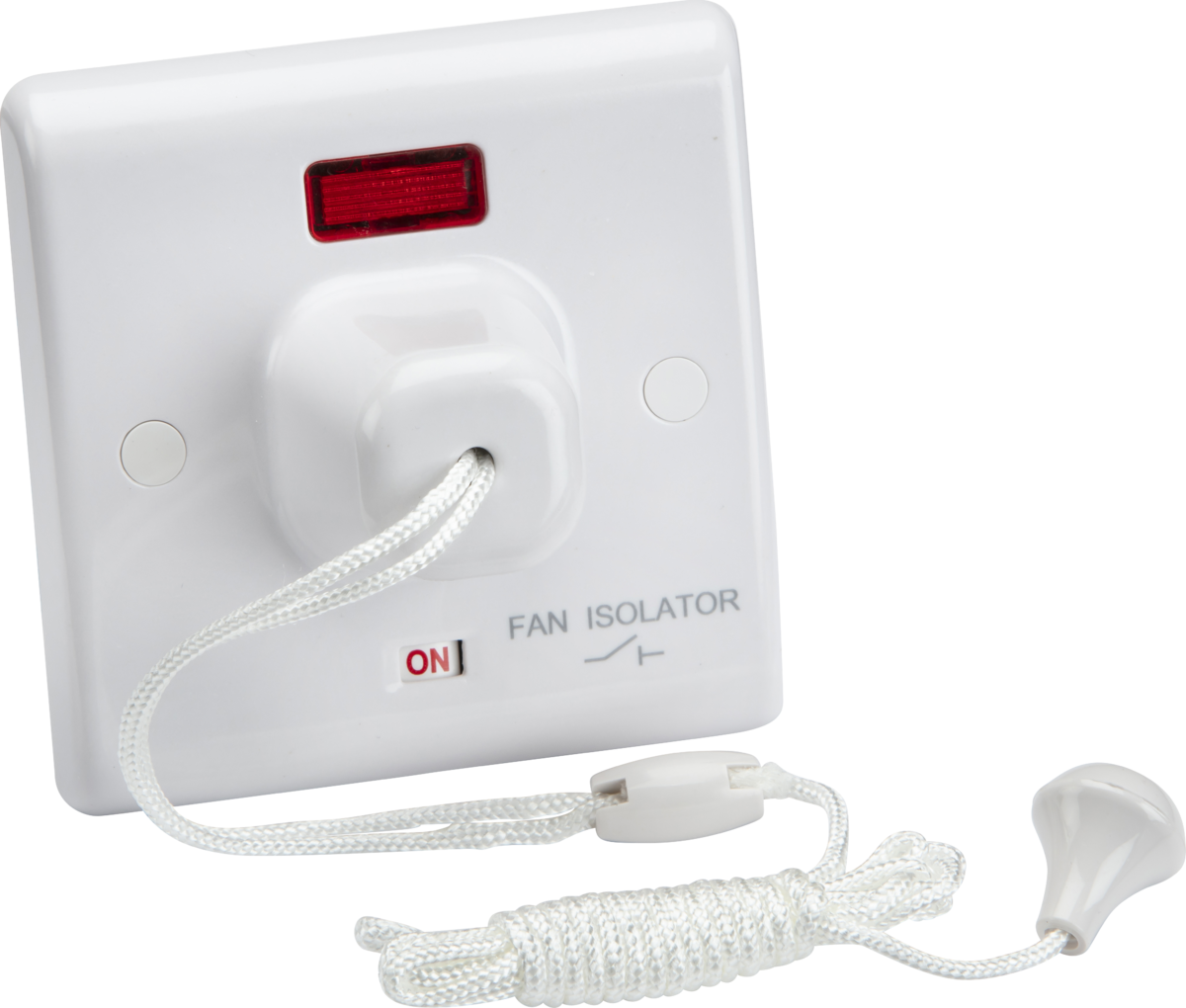

Fan isolator pull cord switches are typically used on bathrooms or other environments where an extractor fan is installed. Its job is to safely isolate the fan from the electrical supply for maintenance or repairs without affecting other circuits.
This option of Fan isolation is ideal for use in bathrooms mounted on ceiling, outside the zone around the bath or shower to meet safety regulations.
- 10A rated
- Triple Pole
- With Neon Indicator
- With Mechanical Indicator
- Laser printed for cleaner look and longevity
- Rated conditional short circuit current (Inc) 1500mA
- Includes screw cap covers
- With approx., 1.7m pull cord
Download
| Unit Barcode | 5056270891034 |
|---|---|
| Inner Carton Quantity | 5 |
| Inner Carton Weight | 1.2 Kg |
| Inner Carton Length | 15.2 cm |
| Inner Carton Width | 14.8 cm |
| Inner Carton Height | 9.3 cm |
| Inner Carton Barcode | 5056270891041 |
| Outer Carton Quantity | 50 |
| Outer Carton Weight | 12 Kg |
| Outer Carton Length | 48.5 cm |
| Outer Carton Width | 16.5 cm |
| Outer Carton Height | 32 cm |
| Outer Carton Volume | 0.025600 m3 |
| Outer Carton Barcode | 5056270891058 |
| Length | 85 mm |
|---|---|
| Width | 85 mm |
| Depth | 44 mm |
| Projection | 16 mm |
| Min. Mounting Box Depth | 25mm |
| Construction | Thermoset resin |
|---|---|
| Finish | White |
| Class | I |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Cable Length | 1.5 m |
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | Yes |
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
| Warranty | 25 |
|---|
| Commodity Code | 8536508000 |
|---|
