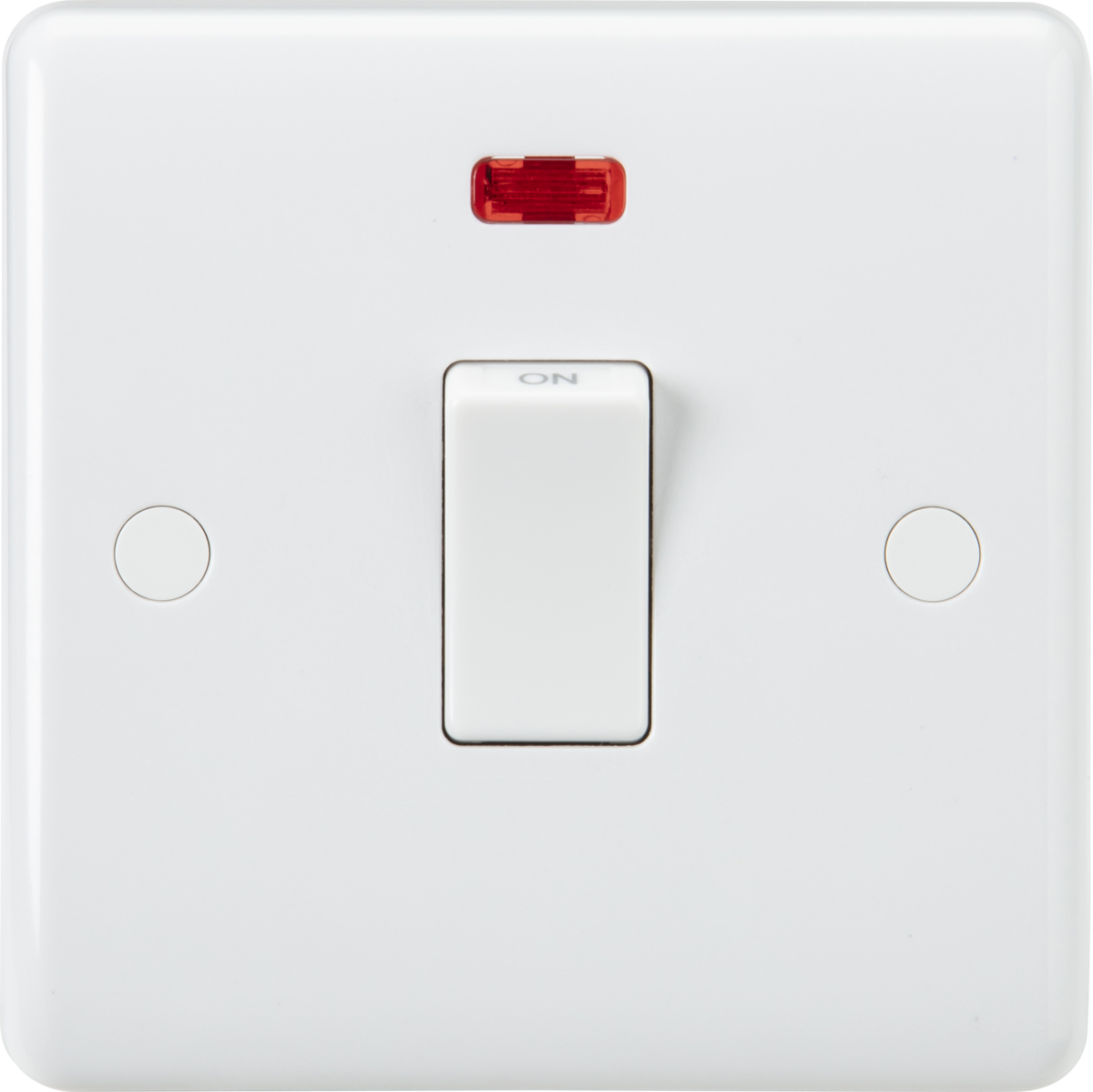

Gently contoured 10mm plate with rounded edge and anti-microbial properties.
Ideal for appliances that draw a lot of current such as electric ovens, showers, water heaters and industrial equipment. these appliance often require a dedicated circuit and a switch that can handle higher amperage and the ability to isolate.
- 32A rated
- Double Pole
- flex outlet from base
- With neon indicator
- includes screw cap covers
| Unit Barcode | 5056270893281 |
|---|---|
| Inner Carton Quantity | 10 |
| Inner Carton Weight | 1.05 Kg |
| Inner Carton Length | 18.5 cm |
| Inner Carton Width | 14.2 cm |
| Inner Carton Height | 9.3 cm |
| Inner Carton Barcode | 5056270893298 |
| Outer Carton Quantity | 100 |
| Outer Carton Weight | 10.5 Kg |
| Outer Carton Length | 48.5 cm |
| Outer Carton Width | 29.5 cm |
| Outer Carton Height | 20 cm |
| Outer Carton Volume | 0.028600 m3 |
| Outer Carton Barcode | 5056270893304 |
| Height | 86 mm |
|---|---|
| Width | 86 mm |
| Depth | 28.5 mm |
| Projection | 10 mm |
| Recessed Depth | 14 mm |
| Min. Mounting Box Depth | 25-35mm (dependent on wiring conditions) |
| Construction | Thermoset resin |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | Yes |
| Terminal | Captive |
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
| Warranty | 25 |
|---|

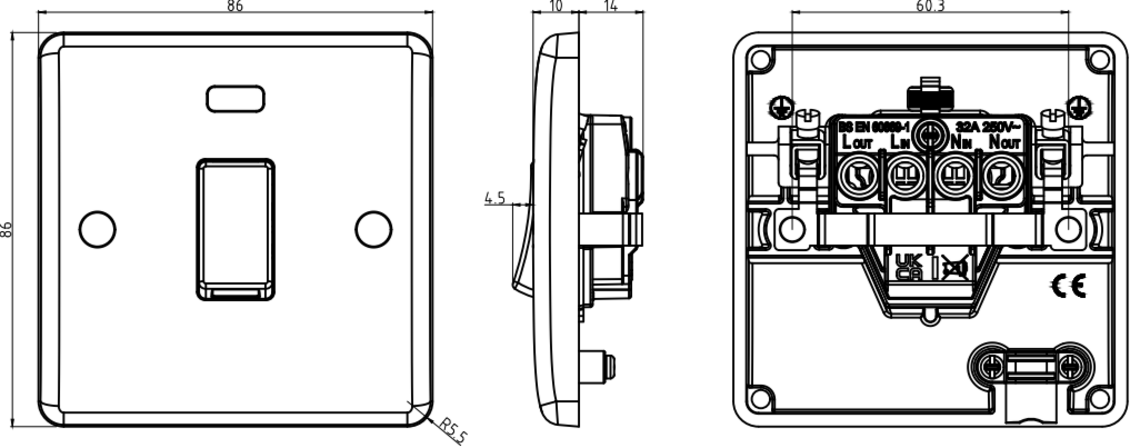

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536303000 |
|---|
