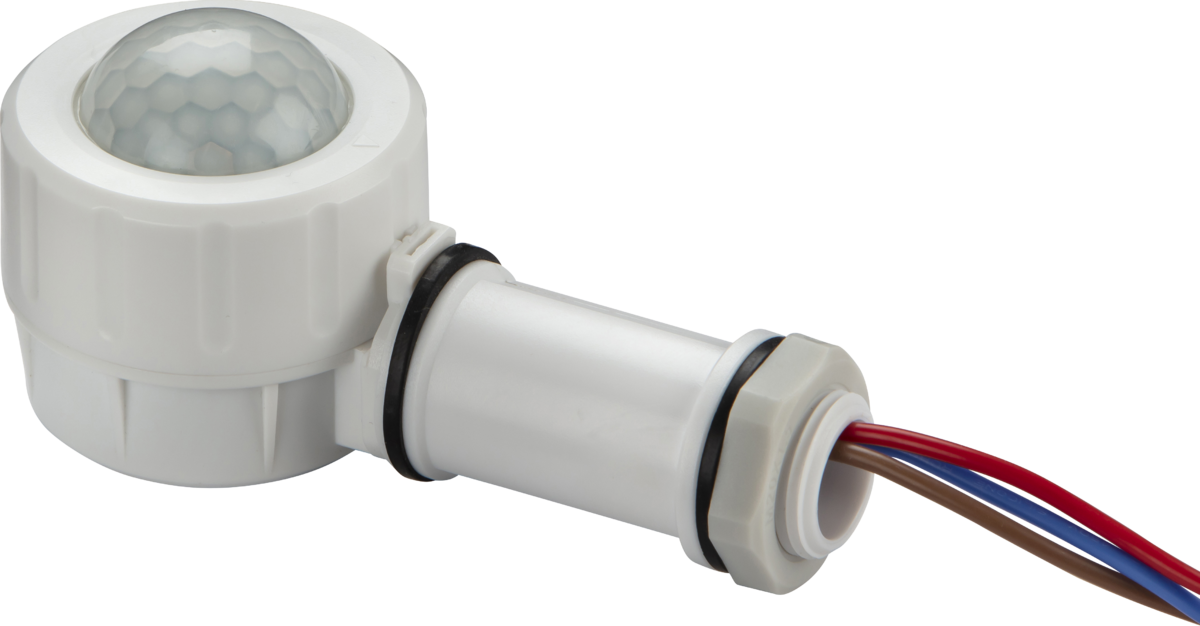

IP65 Pre-wired PIR sensor. Ideal for luminaires with 20mm end conduit entry. Sensor is equipped with adjustable hold time, sensitivity and lux.
- Max load: 200W LED
- Internal and external use
- Range: 4-6M max at height of 3M
- Hold-on Time: 5 sec to 30 min
- Ambient Light Threshold (lux): 5 to 150lux / Disable
- Ideal for Commercial use
- Non-dimmable
- 120° detection angle
*Default setting - Sensitivity 100% / Hold time: 5s / Daylight sensor: Disable

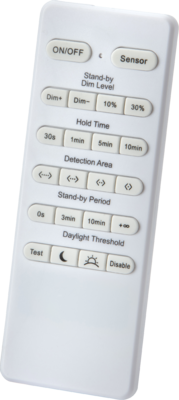

- Remotes available; OSPIRRE, AXREMC to adjust default settings
| Unit Barcode | 5056270893694 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.1 Kg |
| Inner Carton Length | 12.5 cm |
| Inner Carton Width | 5.5 cm |
| Inner Carton Height | 5.5 cm |
| Inner Carton Barcode | 5056270893694 |
| Outer Carton Quantity | 120 |
| Outer Carton Weight | 12.5 Kg |
| Outer Carton Length | 56 cm |
| Outer Carton Width | 39.5 cm |
| Outer Carton Height | 24 cm |
| Outer Carton Volume | 0.053100 m3 |
| Outer Carton Barcode | 5056270893700 |
| Diameter | 50 mm |
|---|---|
| Length | 106 mm |
| Height | 50 mm |
| Construction | Polycarbonate |
|---|---|
| Finish | White |
| Class | II |
| IP Rating | IP65 |
| Primary Voltage | 230V 50Hz |
| Cable Length | 0.25 m |
| Warranty | 3 |
|---|
| Commodity Code | 8536500500 |
|---|
