Hard wearing, all purpose Square Edge 9mm plate with anti-microbial properties
- Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
- Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps
- 2-way
- Push On/Off, rotary dimming action
- Preset in Trailing-edge mode
- 5-400W (5-150 W LED)
- Suitable for use with dimmable lamps only
NB: DO NOT USE IN A MIXED ENVIRONMENT i.e. difference brands of lamps or different wattages of lamps in same fitting
| Unit Barcode | 5056270852936 |
|---|---|
| Inner Carton Quantity | 5 |
| Inner Carton Length | 15.2 cm |
| Inner Carton Width | 14.8 cm |
| Inner Carton Height | 9.3 cm |
| Inner Carton Barcode | 5056270853056 |
| Outer Carton Quantity | 50 |
| Outer Carton Length | 48.5 cm |
| Outer Carton Width | 16.5 cm |
| Outer Carton Height | 32 cm |
| Outer Carton Volume | 0.025600 m3 |
| Outer Carton Barcode | 5056270854138 |
| Height | 86 mm |
|---|---|
| Width | 86 mm |
| Depth | 43.5 mm |
| Projection | 26.5 mm |
| Recessed Depth | 16.3 mm |
| Min. Mounting Box Depth | 25mm |
| Plate Depth | 9 mm |
| Construction | Thermoset resin |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
|---|
| Warranty | 2 |
|---|

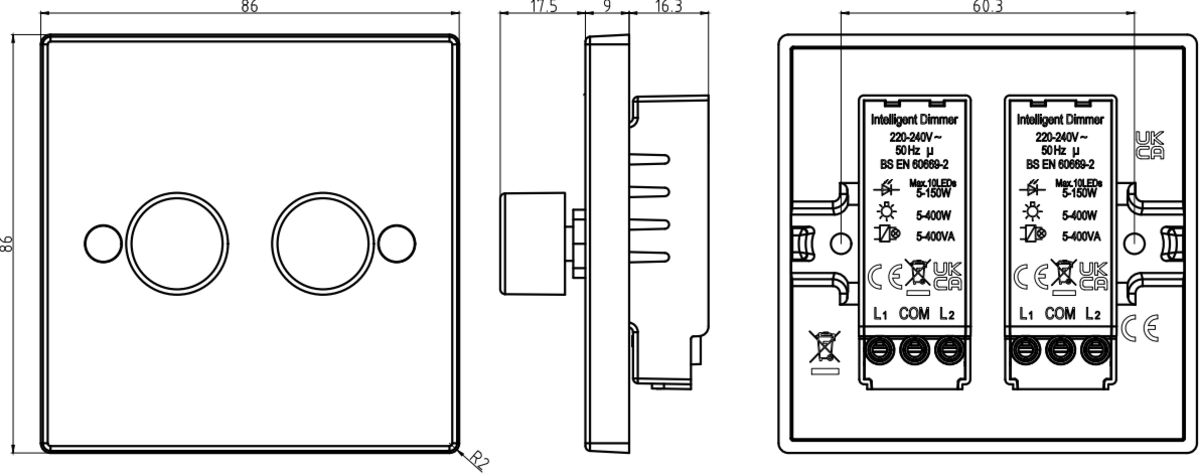

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536 5080 90 |
|---|
