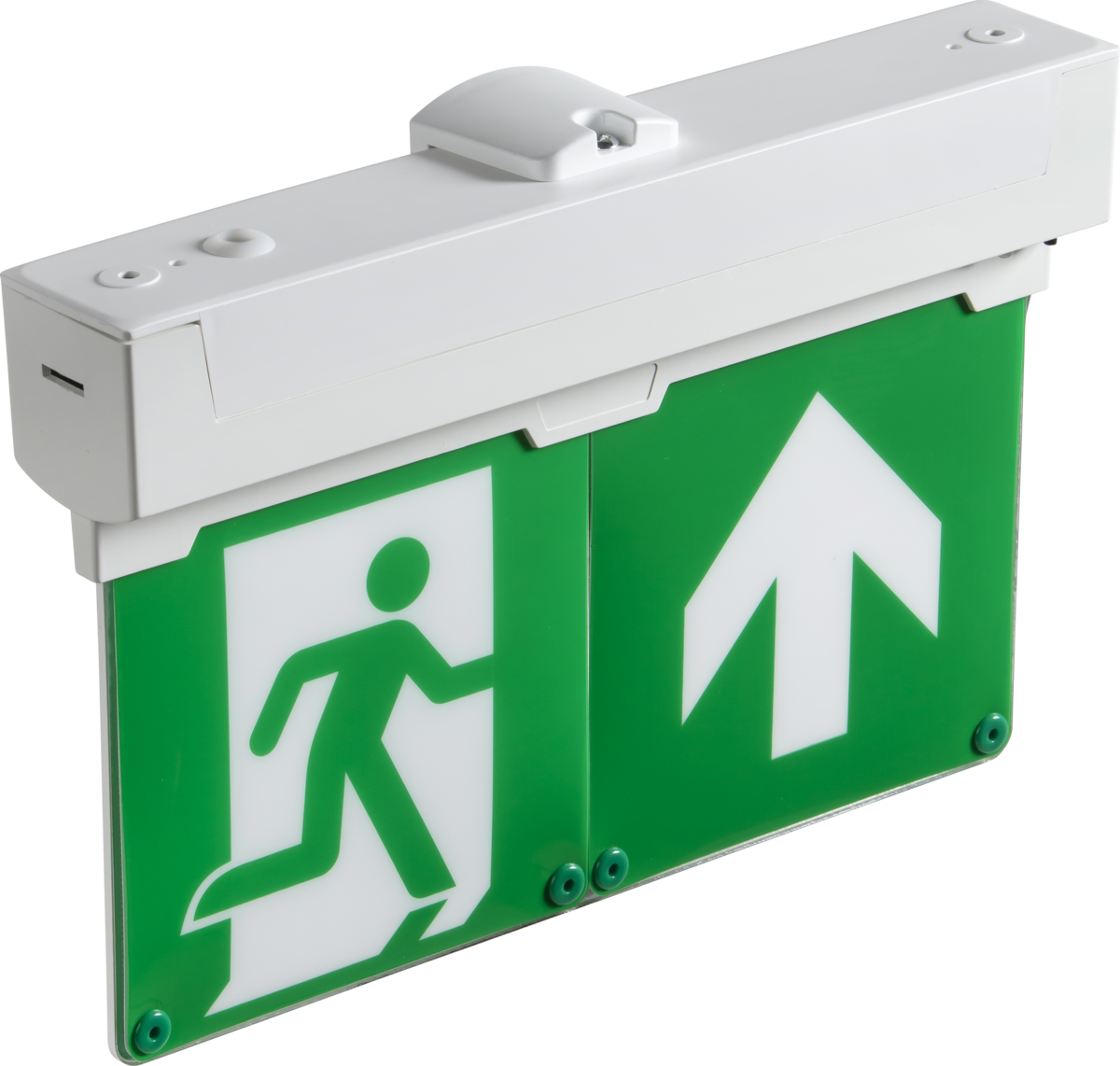

LED emergency exit sign complete with rotatable legends. Supplied with Arrow UP as standard.
- Full DALI2 control and monitoring
- Suitable for wall and ceiling mounting
- Accessories included to mount it recessed or suspended.
- Maintained or non-maintained
- Lithium (LiFePO4) battery
| Unit Barcode | 5061061278819 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.9 Kg |
| Inner Carton Length | 18 cm |
| Inner Carton Width | 8 cm |
| Inner Carton Height | 30.5 cm |
| Inner Carton Barcode | 5061061278819 |
| Outer Carton Quantity | 10 |
| Outer Carton Weight | 10.00 Kg |
| Outer Carton Length | 41.5 cm |
| Outer Carton Width | 32 cm |
| Outer Carton Height | 38 cm |
| Outer Carton Volume | 0.050500 m3 |
| Outer Carton Barcode | 5061061279687 |
| Length | 264 mm |
|---|---|
| Height | 173 mm |
| Width | 45 mm |
| Construction | Polycarbonate |
|---|---|
| Finish | White |
| Class | II |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Emergency | Maintained / Non-maintained (not Switched) |
|---|
| Light Technology | LED |
|---|---|
| Wattage (kWh/1000h) | 3 W |
| CCT #1 | 6500 K |
| Lamp Included | Yes |
| Light Colour | Daylight |
|---|---|
| Lumens | 65 lm |
| Lumens (Em. mode) | 40 lm |
| CRI | >70 |
| Photometric LDT | EMEXIT2DA - LDT files.zip |
| Warranty | 3 |
|---|---|
| Warranty Information | including battery |

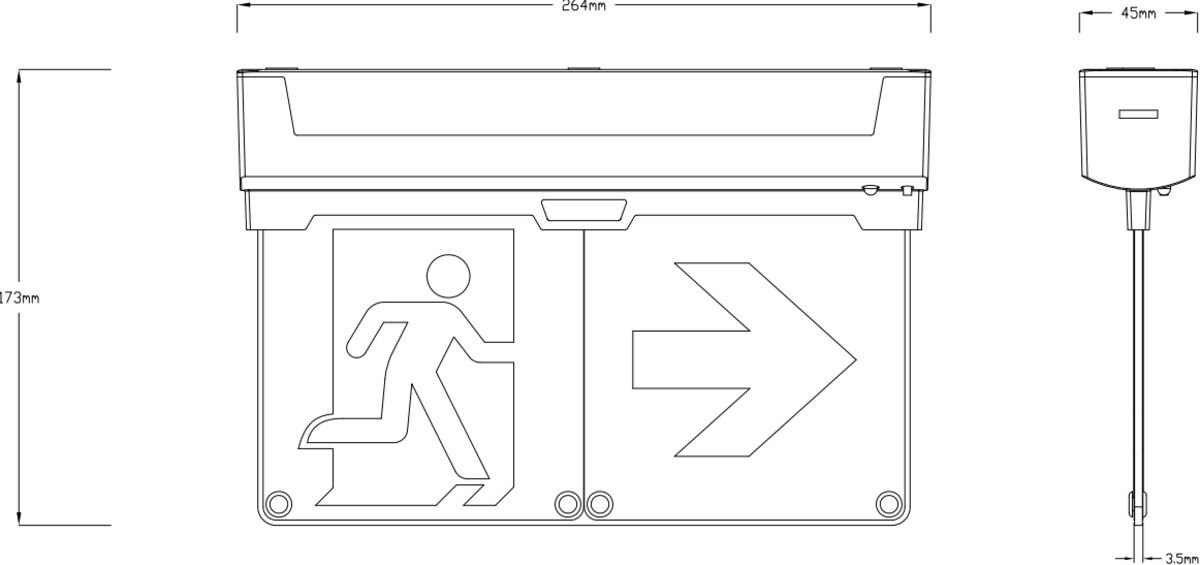

| Line Drawing 1 |  |
|---|
| Commodity Code | 9405612090 |
|---|
