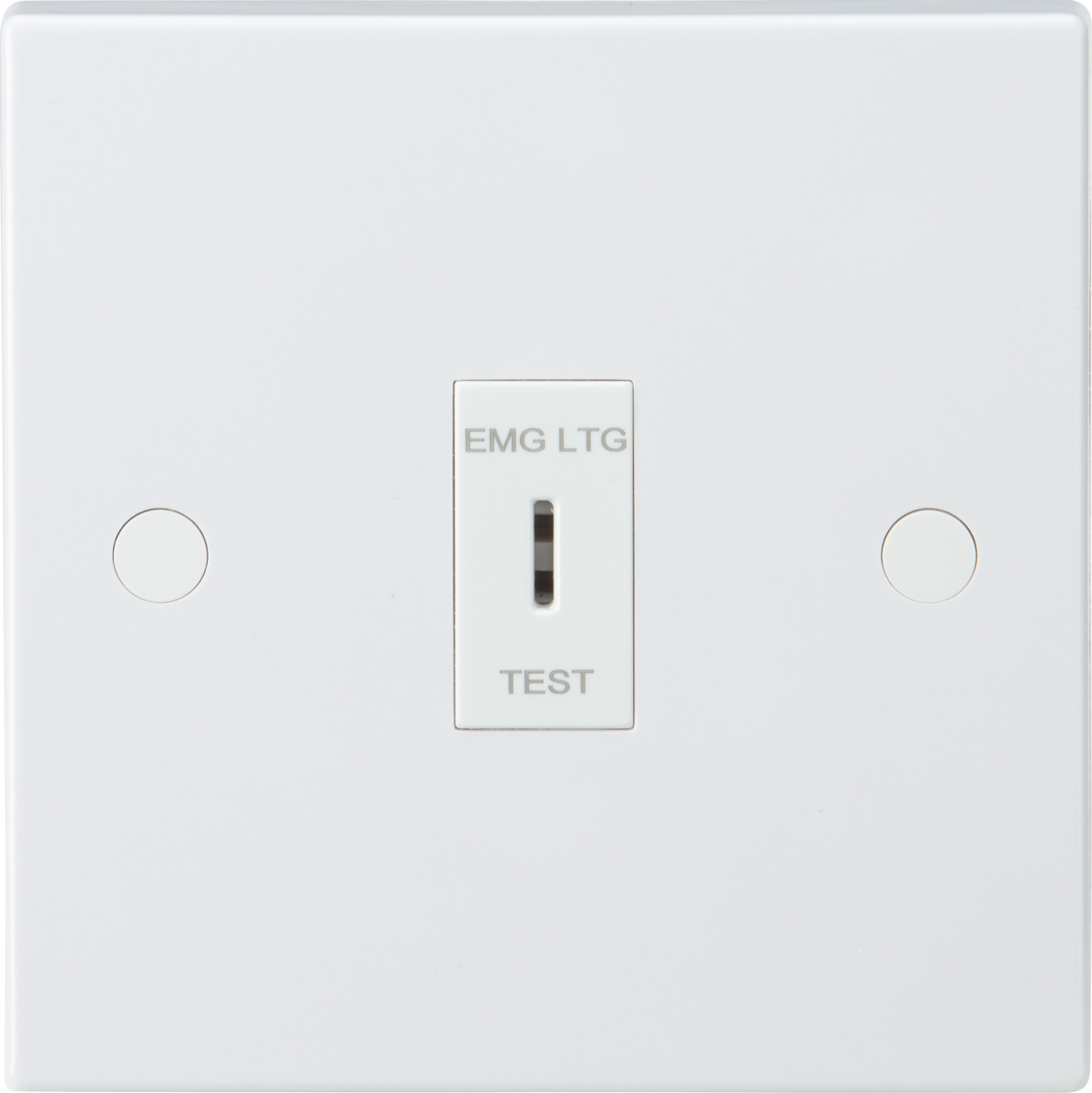

Hard wearing, all purpose Square Edge 9mm plate with anti-microbial properties. This EMG LTG TEST option is designed to simulate the power being shut off, so Emergency lighting can be tested, whilst also providing controlled access for authorized personnel only.
- 10AX
- Double Pole
- Key Switch (Key included)
- Switched marked EMG TLG TEST
| Unit Barcode | 5061061278918 |
|---|---|
| Inner Carton Quantity | 10 |
| Inner Carton Weight | 0.75 Kg |
| Inner Carton Length | 18.5 cm |
| Inner Carton Width | 14.2 cm |
| Inner Carton Height | 9.3 cm |
| Inner Carton Barcode | 5061061279052 |
| Outer Carton Quantity | 100 |
| Outer Carton Weight | 8 Kg |
| Outer Carton Length | 484.5 cm |
| Outer Carton Width | 29.5 cm |
| Outer Carton Height | 20 cm |
| Outer Carton Volume | 0.285900 m3 |
| Outer Carton Barcode | 5061061279298 |
| Height | 86 mm |
|---|---|
| Width | 86 mm |
| Depth | 20.1 mm |
| Projection | 9 mm |
| Recessed Depth | 11.1 mm |
| Min. Mounting Box Depth | 16mm |
| Plate Depth | 9 mm |
| Construction | Thermoset resin |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
|---|
| Warranty | 25 |
|---|

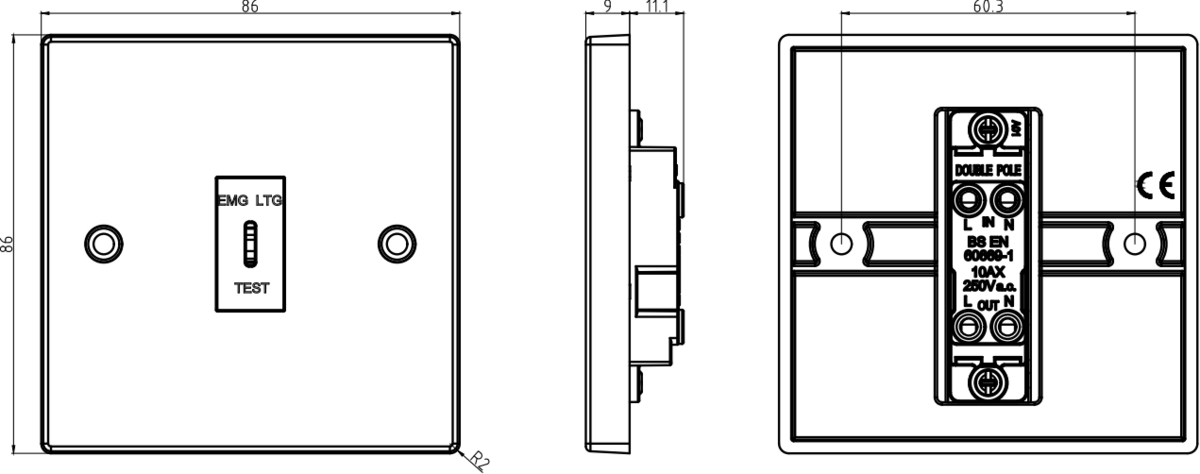

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536508000 |
|---|
