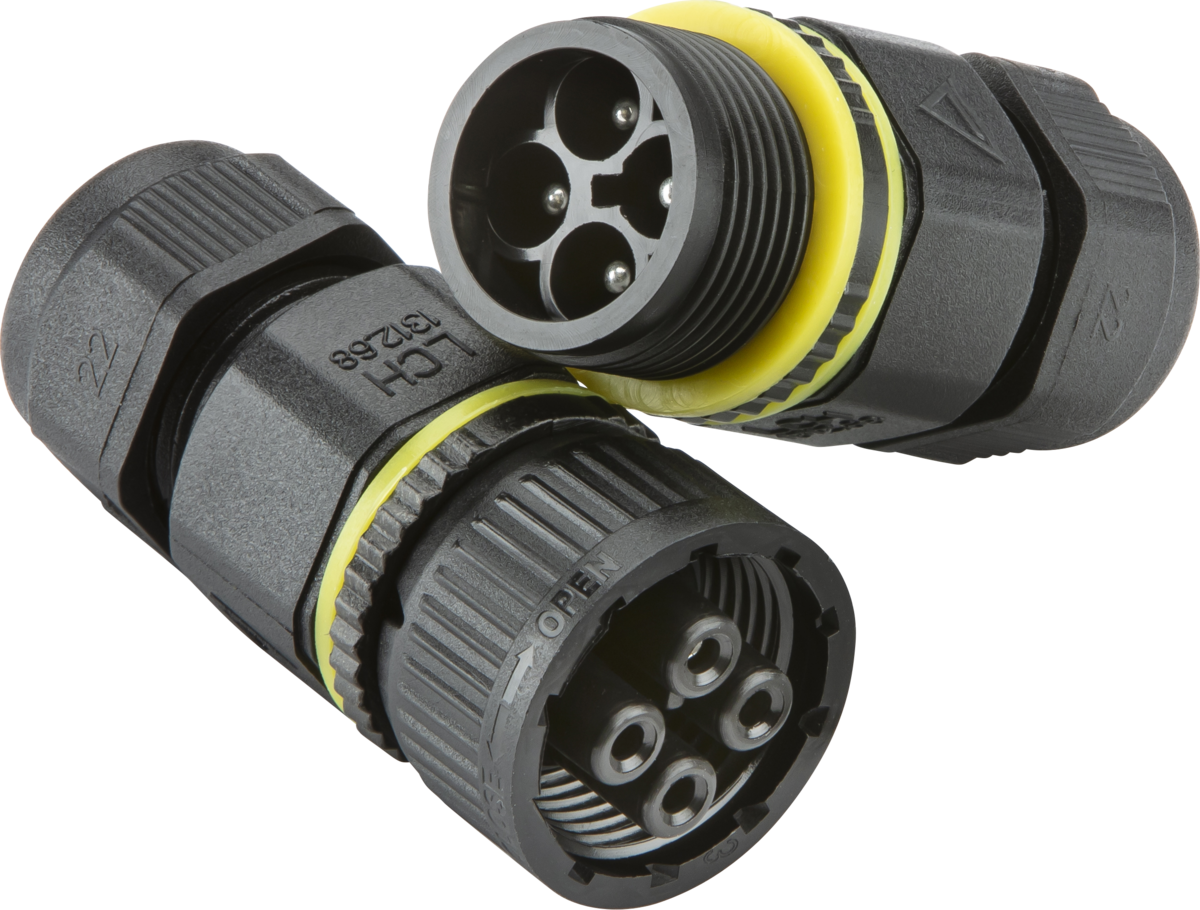

The JB0012 is an IP68 16A 4-pin weatherproof plug and socket connector its the kind of gear you reach of when you need serious power and protection - especially in demanding environments where failure isn't an option.
Features
- IP68 rating means it’s fully dust-tight and can withstand long-term immersion in water — ideal for outdoor, underground, or marine applications.
- 16A current rating supports higher-power devices, making it suitable for industrial machinery, industrial lighting systems, or heavy-duty tools.
- 4-pin configuration gives you flexibility - it can be used for three-phase power plus earth, or power plus control signals used in automation or emergency lighting setups
- Plug and socket design makes it easy to disconnect and reconnect equipment safely, even in wet or dirty conditions
- Secure screw terminals and robust housing ensure long-lasting, vibration-resistant connections, even in high-moisture or high-dust zones.
- Ideal for use on construction sites, outdoor event setups, outdoor lighting, EV charging stations, agricultural equipment and even underwater lighting systems — basically anywhere you need reliable, high-current connections that can take a beating from the elements.
Specification
- IP68 rated (@2bar)
- 16A 450V PTI 250
- 4-pin
- 2-way
- Manufactured from polycarbonate casing and PA66 cable glands with silicon
- Silver plated copper screw fix terminals
- Min: 5mm cable diameter
- Max: 12mm cable diameter
- M22 size cable glands
- For use with H07RNF 3G 0.75mm2 - 2.5mm2 cable
- Certified to EN 62444
