A slim profile, recessed emergency downlight designed for non-maintained operation. Features an adjustable trim, compatible with two cut-out diameters. Along with plug and play inverter and battery kit, for easy installation, ideal for discreet emergency lighting in modern interiors.
- LiFePO4 (Lithium) battery
- Low profile design
- Non-maintained
- Plug & Play inverter kit and battery pack included
- Adjustable trim for 70-130mm cut-out
5700K, 110lm (EM Mode)
| Unit Barcode | 5056270885767 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.43 Kg |
| Inner Carton Length | 17 cm |
| Inner Carton Width | 16.5 cm |
| Inner Carton Height | 4.5 cm |
| Inner Carton Barcode | 5056270885767 |
| Outer Carton Quantity | 20 |
| Outer Carton Weight | 9.2 Kg |
| Outer Carton Length | 48.5 cm |
| Outer Carton Width | 35 cm |
| Outer Carton Height | 18.5 cm |
| Outer Carton Volume | 0.031400 m3 |
| Outer Carton Barcode | 5056270890297 |
| Diameter | 140 mm |
|---|---|
| Projection | 3 mm |
| Recessed Depth | 11 mm |
| Minimum Void | 80 mm |
| Cut-out Diameter | 75 mm |
| Construction | Polycarbonate |
|---|---|
| Finish | White |
| Class | II |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Emergency | Non-maintained only |
|---|
| Light Technology | SMD LED |
|---|---|
| Dimmable | No |
| Wattage (kWh/1000h) | 3 W |
| CCT #1 | 5700 K |
| L70B50 | 55,000 |
| Lamp Included | Yes |
| Beam Angle | 120 ° |
| Light Colour | Daylight |
|---|---|
| Lumens (Em. mode) | 110 lm |
| CRI | >70 |
| Warranty | 3 |
|---|---|
| Warranty Information | (including battery) |

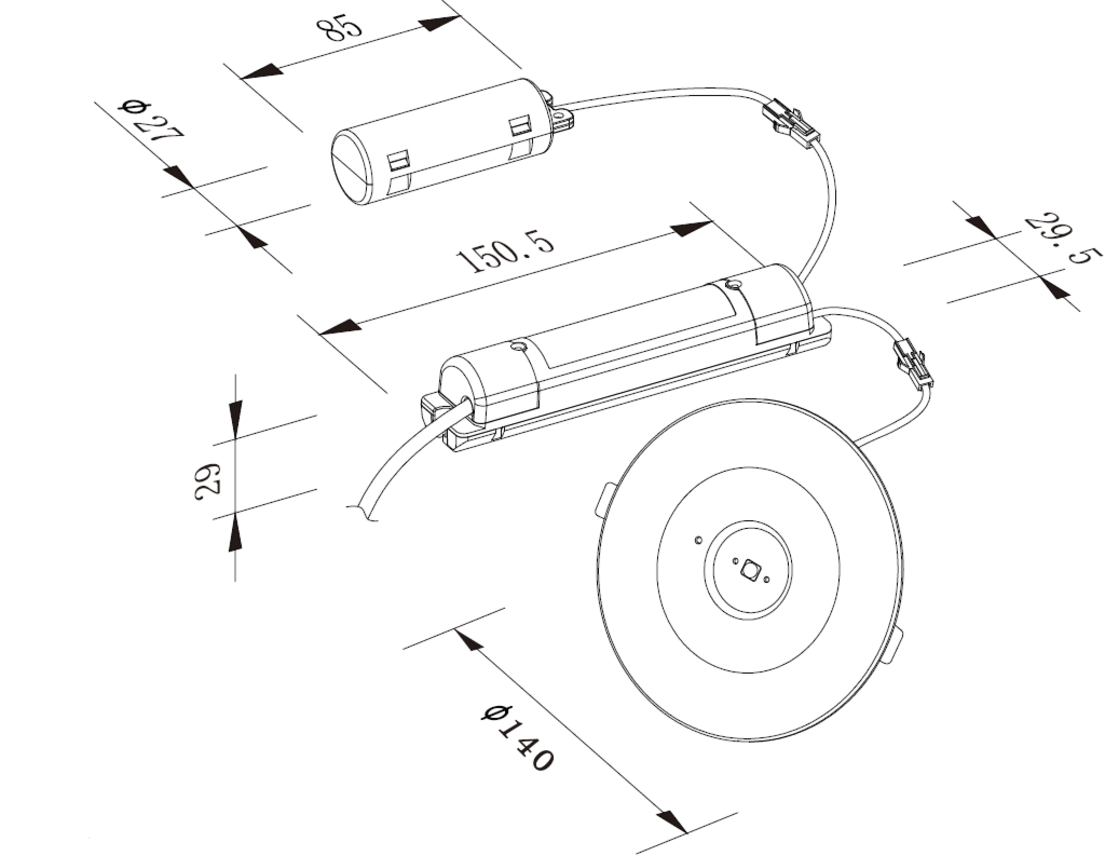

| Line Drawing 1 |  |
|---|
| Commodity Code | 9405612090 |
|---|
