Introducing K-LINE 3-circuit track system, designed for efficient and versatile lighting solutions in commercial spaces. The 3-circuit track system provides flexible lighting control, allowing independent operation of three separate circuits, perfect for customizing illumination to suit different areas or moods within your space.

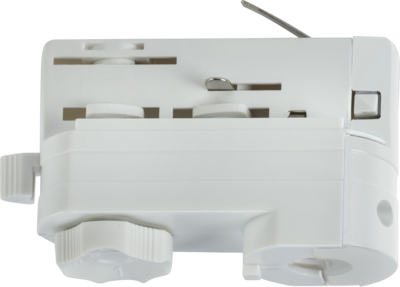

The 3-circuit track offer consist of matt black or matt white finish.
- Compatible with K-LINE (KLxx) 3 circuit series track system
- Max. load 100W
- Flex diameter: 1.5mm to 6mm
- Max. weight 5kg
*Flex not included
| Unit Barcode | 5056270891126 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.11 Kg |
| Inner Carton Length | 9.1 cm |
| Inner Carton Width | 8.2 cm |
| Inner Carton Height | 2.4 cm |
| Inner Carton Barcode | 5056270891126 |
| Outer Carton Quantity | 80 |
| Outer Carton Weight | 9.6 Kg |
| Outer Carton Length | 50 cm |
| Outer Carton Width | 50 cm |
| Outer Carton Height | 25 cm |
| Outer Carton Volume | 0.062500 m3 |
| Outer Carton Barcode | 5056270891133 |
| Length | 84 mm |
|---|---|
| Height | 55 mm |
| Width | 33 mm |
| Projection | 29.3 mm |
| Construction | Polycarbonate |
|---|---|
| Construction 2 | & copper |
| Finish | Black |
| Class | I |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Warranty | 5 |
|---|

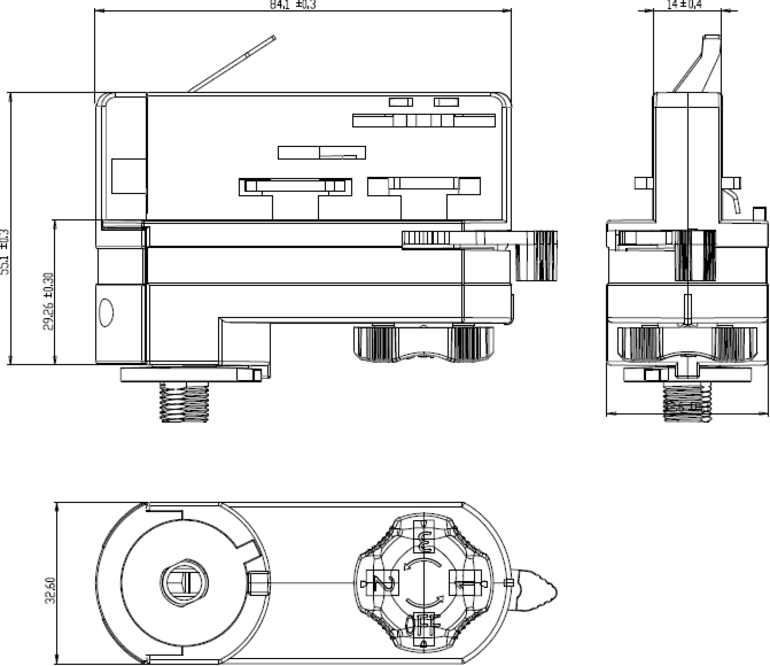

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536901000 |
|---|
