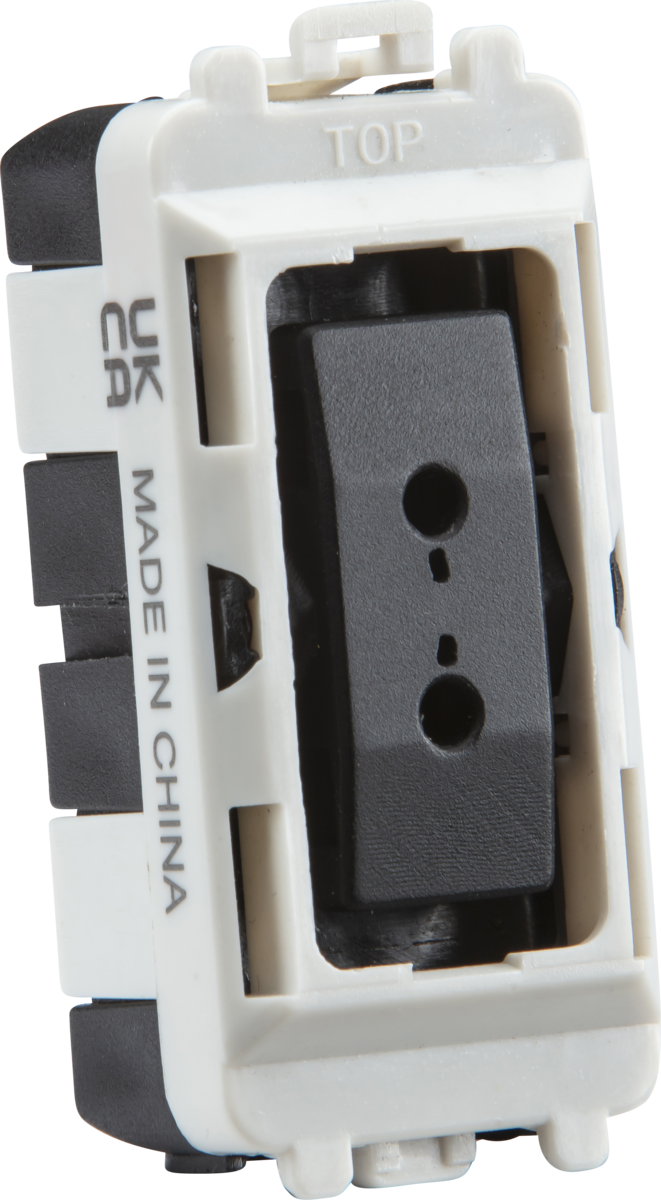

Designed for use with the Knightsbridge Decorative Metal/Metal Clad Grid system. Module simply clips into position from the front of the mounting frames (sold separately)
This module is supplied without a rocker cover (please select one to match the install your doing part no. GDBLANKxx)
- 20AX
- 2-way retractive switch - centre off
- Single Pole
| Unit Barcode | 5056270891171 |
|---|---|
| Inner Carton Quantity | 10 |
| Inner Carton Weight | 0.52 Kg |
| Inner Carton Length | 13.6 cm |
| Inner Carton Width | 6 cm |
| Inner Carton Height | 5.2 cm |
| Inner Carton Barcode | 5056270891188 |
| Outer Carton Quantity | 100 |
| Outer Carton Weight | 5.5 Kg |
| Outer Carton Length | 28.5 cm |
| Outer Carton Width | 13.5 cm |
| Outer Carton Height | 15.1 cm |
| Outer Carton Volume | 0.005800 m3 |
| Outer Carton Barcode | 5056270891195 |
| Height | 56.3 mm |
|---|---|
| Width | 24.8 mm |
| Depth | 18.7 mm |
| Recessed Depth | 18.7 mm |
| Min. Mounting Box Depth | 35mm |
| Construction | ABS |
|---|---|
| Construction 2 | & steel |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Terminal | Captive |
|---|
| Warranty | 25 |
|---|
| Line Drawing 1 |  |
|---|
| Commodity Code | 8536303000 |
|---|
