These metal decorative square edge USB charging sockets make a great addition to any modern home and with a Max. 20W output they are ideal for charging your devices overnight. They come with the latest USB-C port for the latest equipment and a legacy USB-A port for charging older devices.

13A 230V 50Hz
Single Pole
Black Outboard Urea Rockers with red flash
Twin Earth
Dual USB A+C
Fixed Voltage 5V DC 4.0A shared. Max. 20W
Built-in Overload, Overheat and Over Current Protection

NB: We recommend you only use certified USB cables for safety and to ensure compatibility, it is also important to ensure your USB can handle the power output most USB cables are only rated to 30W, some to 60W we recommend only using 30W+ rated cables with this device.

Download

Unit Barcode	5056270891577
Inner Carton Quantity	5
Inner Carton Weight	1.232 Kg
Inner Carton Length	16.2 cm
Inner Carton Width	15.5 cm
Inner Carton Height	9.5 cm
Inner Carton Barcode	5056270894035
Outer Carton Quantity	50
Outer Carton Weight	12.82 Kg
Outer Carton Length	50 cm
Outer Carton Width	32.5 cm
Outer Carton Height	17.7 cm
Outer Carton Volume	0.028800 m³
Outer Carton Barcode	5056270895278

Height	85.75 mm
Width	85.75 mm
Depth	34.4 mm
Projection	12.9 mm
Recessed Depth	21.5 mm
Min. Mounting Box Depth	25mm
Plate Depth	7.5 mm

Construction	304 Stainless steel
Finish	Brushed Chrome
Class	I
IP Rating	IP20
Primary Voltage	230V 50Hz

Earth Terminal	Yes
Terminal	Captive

Warranty	2

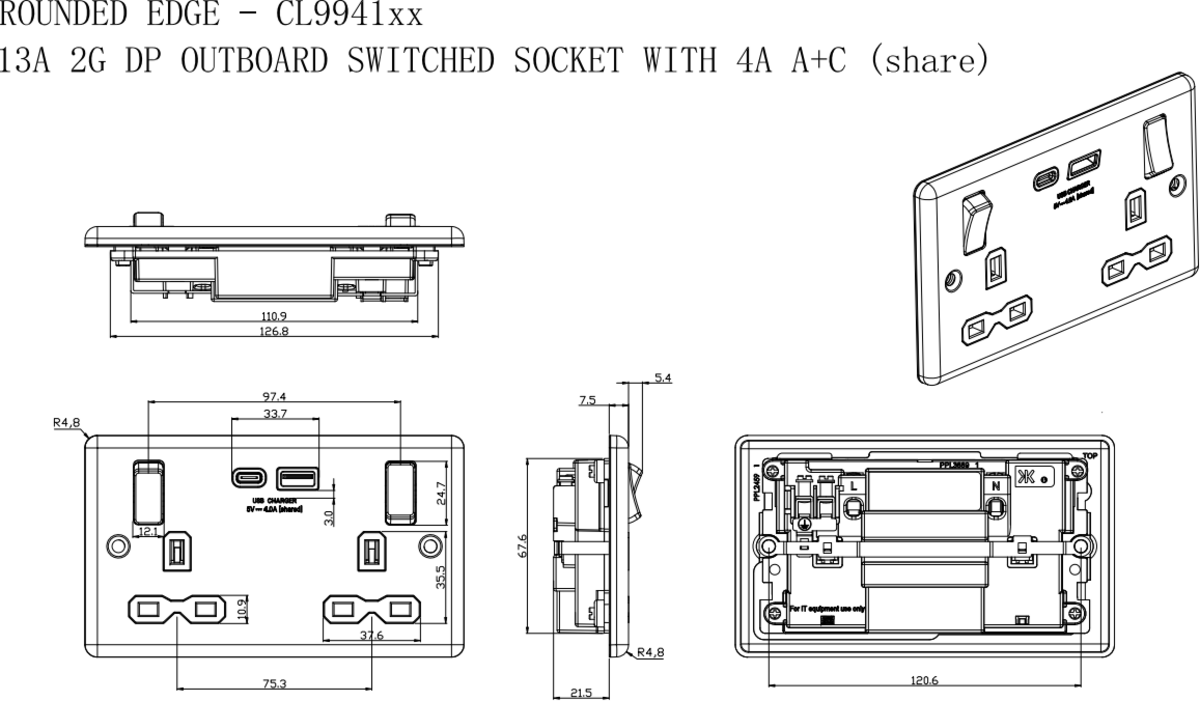

Line Drawing 1	Download

Commodity Code	8536 6990 85

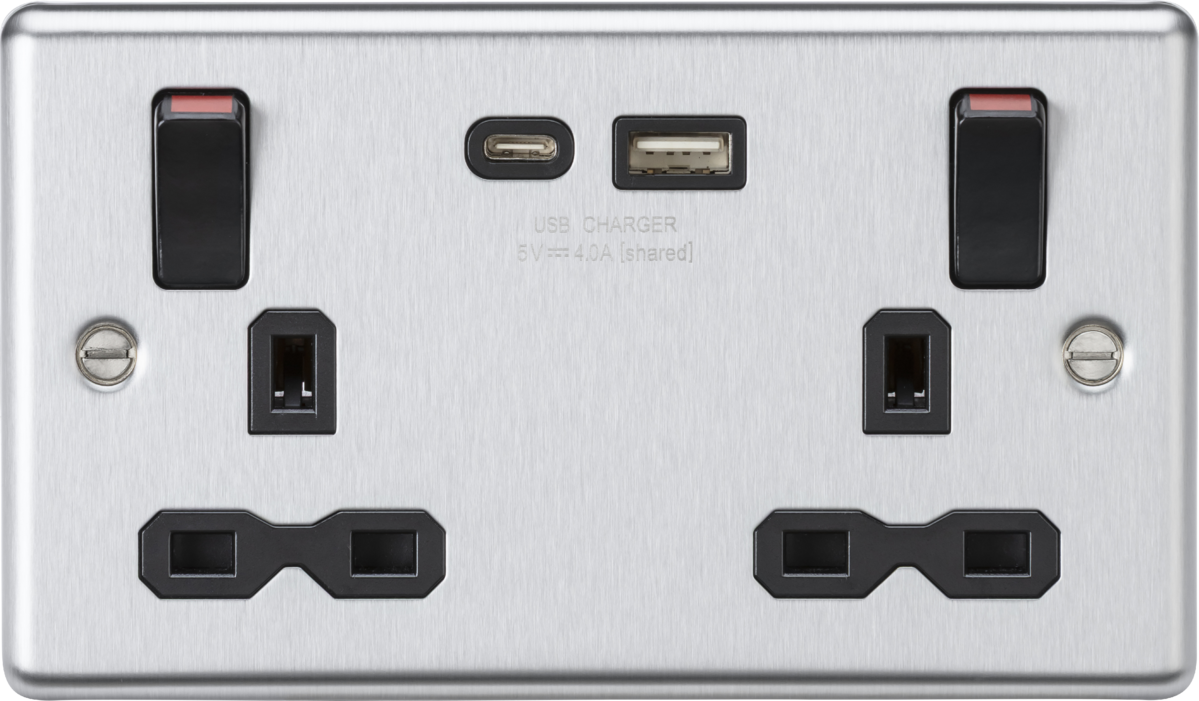

13A 2G DP Socket Dual USB A+C Urea Outboard Rockers with Red Flash - Brushed Chrome w/black insert

CL9941BCUR

Download
