COMING SOON, NEW APRIL 2026

HELIX Modular Non-Corrosive, modular design with Plug and Play Emergency and Sensor modules;

Optional modular microwave sensor, MODMWS
Optional modular dual mode emergency conversion kit, MODEMKIT2

Built for performance, designed for flexibility. Delivers high performance lighting for commercial and industrial applications, both indoor and out. Versatile fitting, with enhanced features;

Rear, side and end conduit entries
New body design compatible with BESA box mounting
Pre-drilled rear and end conduit entries with unique replaceable end caps
Large bracket fixing point to ease mounting process
Detachable terminal blocks to ease cable entry points
Plug and Play Emergency and Sensor modules

Constructed from robust, anti-corrosive polycarbonate material and stainless steel clips as standard, these fittings offer maximum performance with minimal maintenance.

IP66 and IK10 rating
High efficiency
Push-fit loop in-loop out terminal block
Supplied with surface mount plates as standard. Suspension kit available (sold separately)

Download

Unit Barcode	5056270892260
Inner Carton Quantity	1
Inner Carton Weight	2.6 Kg
Inner Carton Length	187 cm
Inner Carton Width	10 cm
Inner Carton Height	8.6 cm
Inner Carton Barcode	5056270892260
Outer Carton Quantity	6
Outer Carton Weight	16.6 Kg
Outer Carton Length	188.5 cm
Outer Carton Width	32 cm
Outer Carton Height	19 cm
Outer Carton Volume	0.114600 m³
Outer Carton Barcode	5056270892307

Length	1865 mm
Height	81 mm
Width	95 mm
Projection	81 mm

Construction	Polycarbonate
Finish	Grey
Class	I
IP Rating	IP66
Primary Voltage	230V 50Hz

Diffuser	Opal

Light Technology	SMD LED
Dimmable	No
Wattage (kWh/1000h)	31 W
Energy efficiency class	C
CCT #1	4000 K
L70B50	70,000
Lamp Included	Yes
Beam Angle	120 °

Light Colour	Cool White
Lumens	4515 lm
Lumens (Light source only)	5255 lm
Efficacy (Light source)	165 lm/W
CRI	>80
Photometric LDT	HEX6 - 6FT 31W - 4000K.ldt

Warranty	5

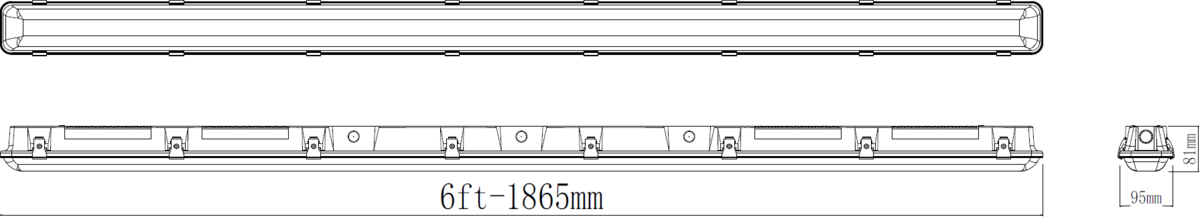

Line Drawing 1	Download

Commodity Code	9405423990
