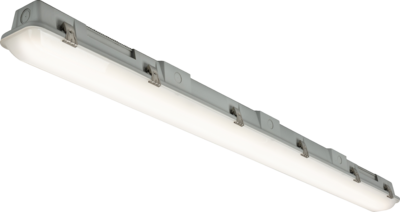

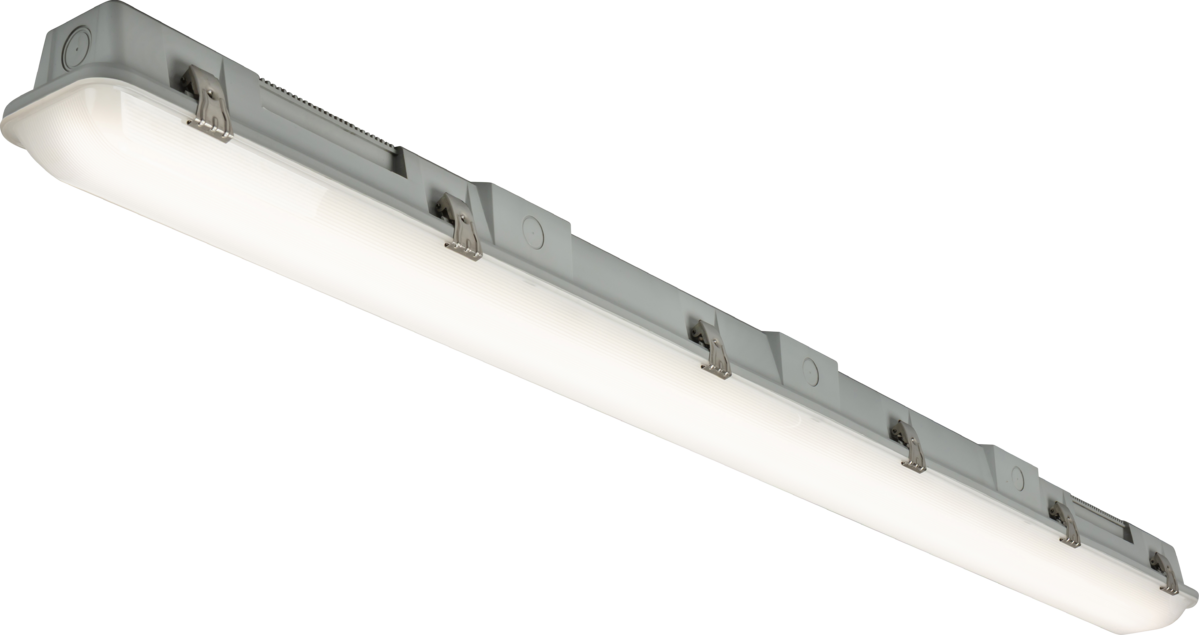

HELIX SHIFT 4FT 230V IP66 IK10 Quad Wattage Modular Non-Corrosive Fitting - CCT Adjustable

HEXSCW4

COMING SOON, NEW APRIL 2026

HELIX Modular Non-Corrosive, modular design with Plug and Play Emergency and Sensor modules;

  • Optional modular microwave sensor, MODMWS
  • Optional modular dual mode emergency conversion kit, MODEMKIT2

Built for performance, designed for flexibility. Delivers high performance lighting for commercial and industrial applications, both indoor and out. Versatile fitting, with enhanced features;

  • Rear, side and end conduit entries
  • New body design compatible with BESA box mounting
  • Pre-drilled rear and end conduit entries with unique replaceable end caps
  • Large bracket fixing point to ease mounting process
  • Detachable terminal blocks to ease cable entry points
  • Plug and Play Emergency and Sensor modules

Constructed from robust, anti-corrosive polycarbonate material and stainless steel clips as standard, these fittings offer maximum performance with minimal maintenance.

HELIX SHIFT features;

  • Quad wattage (22W / 27W / 33W / 39W)
  • CCT Adjustable (3000K / 4000K / 5700K)
  • IP66 and IK10 rating
  • High efficiency
  • Push-fit loop in-loop out terminal block
  • Supplied with surface mount plates as standard. Suspension kit available (sold separately)
GB energy rating labelEU energy rating label
Unit Barcode 5056270892598
Inner Carton Quantity 1
Inner Carton Weight 1.7 Kg
Inner Carton Length 127 cm
Inner Carton Width 10 cm
Inner Carton Height 8.6 cm
Inner Carton Barcode 5056270892598
Outer Carton Quantity 10
Outer Carton Weight 18 Kg
Outer Carton Length 128.5 cm
Outer Carton Width 52 cm
Outer Carton Height 19 cm
Outer Carton Volume 0.127000 m3
Outer Carton Barcode 5056270892635
Length 1265 mm
Height 81 mm
Width 95 mm
Projection 81 mm
Construction Polycarbonate
Finish Grey
Class I
IP Rating IP66
Primary Voltage 230V 50Hz
Diffuser Opal
Light Technology SMD LED
Dimmable No
Wattage (kWh/1000h) 22/27/33/39 W
Energy efficiency class C
CCT #1 3000/4000/5700 K
L70B50 70,000
Lamp Included Yes
Beam Angle 120 °
Light Colour CCT
Lumens 3120/3380/3210/3820/4085/3875/4585/4990/4725/5295/5825/5565 lm
Lumens (Light source only) 6630 lm
Efficacy (Light source) 171 lm/W
CRI >80
Warranty 7

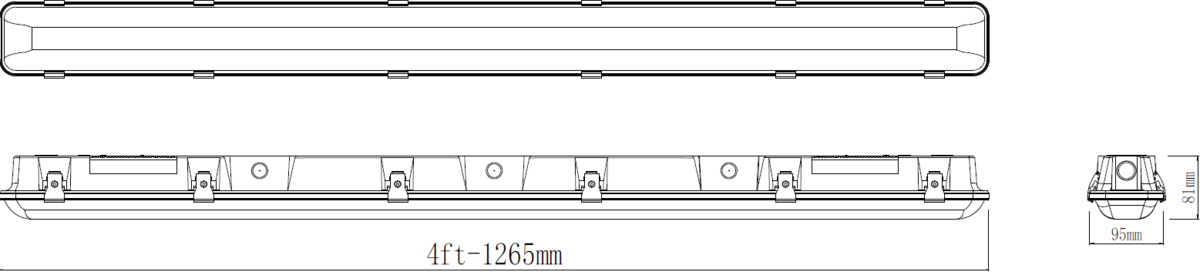

Line Drawing 1 Download
Commodity Code 9405423990
