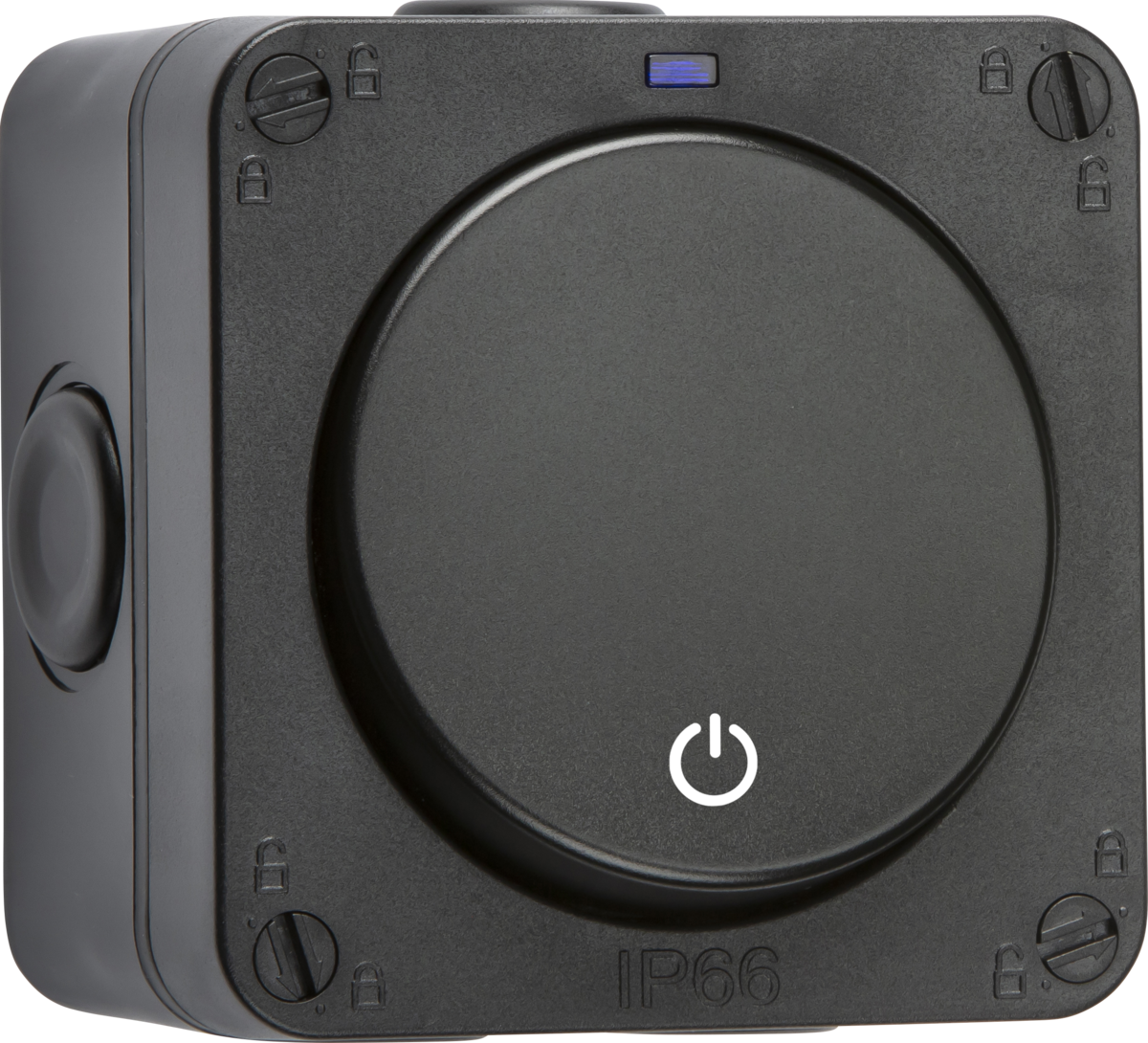

Outdoor Time Delay Switch with retractive switch operation and blue LED activity/location feature.
- Manufactured from robust, high impact grade polycarbonate for a long life
- Black finish with unique circular rocker switch
- IP66 / IK06 rated
- Retractive Switch action
- 16A Resistive, 4A Inductive, Low Voltage 20-200W, 150W LED
- Time Delay Function for 2mins - 180mins - User adjustable (DIP switch)
- 3 wire connection - neutral required
- Multiple 20mm cable entries/exits allow for optimum positioning
| Unit Barcode | 5061061279700 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.28 Kg |
| Inner Carton Length | 10 cm |
| Inner Carton Width | 7.5 cm |
| Inner Carton Height | 10 cm |
| Inner Carton Barcode | 5061061279700 |
| Outer Carton Quantity | 10 |
| Outer Carton Weight | 2.2 Kg |
| Outer Carton Length | 40 cm |
| Outer Carton Width | 22 cm |
| Outer Carton Height | 12 cm |
| Outer Carton Volume | 0.010600 m3 |
| Outer Carton Barcode | 5061061279724 |
| Height | 90.5 mm |
|---|---|
| Width | 90.5 mm |
| Depth | 65.9 mm |
| Projection | 65.9 mm |
| Construction | Polycarbonate |
|---|---|
| Finish | Black |
| Class | II |
| IP Rating | IP66 |
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | Yes |
| Warranty | 2 |
|---|

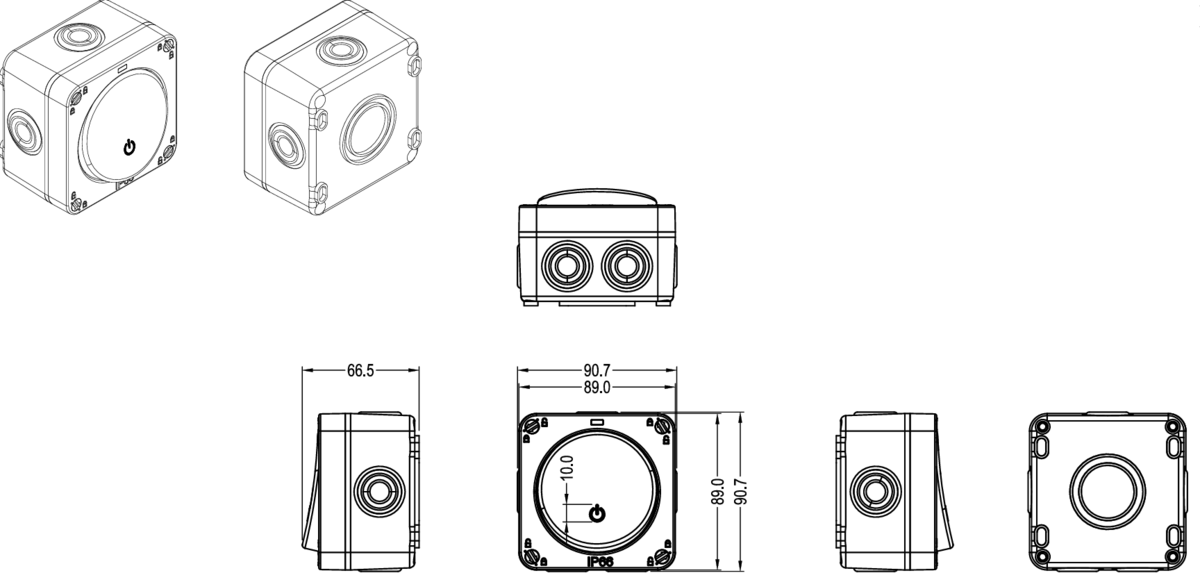

| Line Drawing 1 |  |
|---|
| Commodity Code | 8536 3030 00 |
|---|
