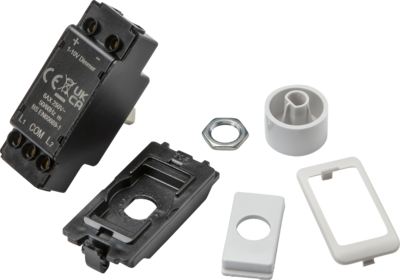

6AX 2-way 1-10V Dimmer Module
CU110V
These dimmers are for use with high frequency ballast or LED drivers that use a 1-10V DC control input, use the rotary action to control the brightness and push on/off to switch mains power on/off. The brightness control and mains switches are electrically isolated.
- 6AX 250V
- 2-way
- 1-10V
- Push On/Off, rotary dimming action
- For dimmable ballast or LED drivers with 1-10V DC control input
- Supplied with a Curved Edge Grid Adaptor kit so that it can be used within that system or with our range of unpopulated dimmer plates
NB: For use with 1-10V ballasts/drivers only. Check the in-rush current for LED lamps or drivers does not exceed 6A, and the rating on the control signal side of the ballast/driver does not exceed 50mA before connecting. Fit inrush current limiters where necessary. Do not overload.
5-400W (5-150W LED) 1G 2-way Intelligent Dimmer
CU2191
5-400W (5-150W LED) 4G 2-way Intelligent Dimmer
CU2194
100A 5-way SP Connector Block - Green (E)
SNEBGR
5-way Single Pole terminal block, colour coded for quick identification of neutral/phase//earth etc.
- 100A 230V AC
- IP20
- Accepts up to 5 conductors 2.5-35mm2
- Top and bottom cable entry points
- Interlocking construction - terminal blocks can be connected to one another to make installations easier
- Shutters included to blank out unused cable entries
- Allen key terminals for secure connection of conductors
- Secure cover - requires Allen key for opening and also has wire locking capability
100A 5-way SP Connector Block - Grey/White (L3)
SNEBWH
100A 5-way SP Connector Block - Black (L2)
SNEBBK
