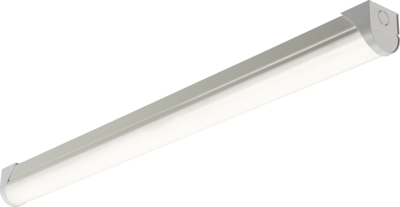

Modular design: Whether the project needs a standard batten, an emergency option or a microwave sensor, the range covers it all with the help of plug-in modules. Choose from various lengths and wattages to suit specific project requirements.
Versatility: Customize the colour temperature with popular CCT options of 3000K, 4000K, and 5700K. Adjust the wattage to 28W, 34W, 41W, or 49W. Mix and match to perfectly meet your project’s specific needs.
High Efficiency: The battens deliver up to 150 lm/W, providing bright illumination while minimizing energy consumption. This superior performance is achieved by utilizing the latest LED chip and Tridonic driver technology.
Quick installation: The hinged tray mechanism ensures easy installation. Conduit entries, standard 600mm fixing points, and BESA compatibility ensure that the range will retrofit any installation and allow flexibility for new projects.
- Optional modular microwave sensor, MODMWS
- Optional modular emergency conversion kit, MODEMKIT
- High efficiency
- Colour adjustable, 3000K/ 4000K/ 5700K
- Wattage adjustable, 28W/ 34W/ 41W/ 49W
- Powered by Tridonic LED drivers
- Rear and end conduit fixings
- Standard 600mm centres and BESA box compatible
- Hinged gear tray
- Push-fit loop in-loop out terminal block
- 28W - 4,200lm at 4000K
- 34W - 5,200lm at 4000K
- 41W - 6,100lm at 4000K
- 49W - 7,200lm at 4000K

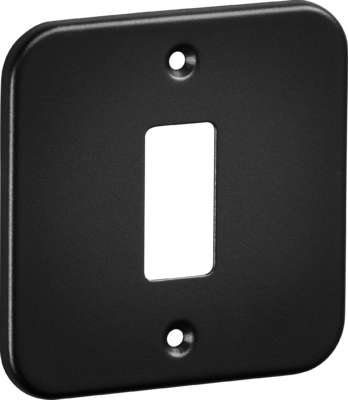

Designed and finished to coordinate with the Curved Edge Switches and Sockets range.
- 10A rated
- Triple Pole
- Key Switch operation ideal for preventing unauthorized On/Off
- Rated conditional short circuit current (Inc) 1500A
- Front mounting grid module
FOR USE WITH CURVED GRID SYSTEM ONLY
